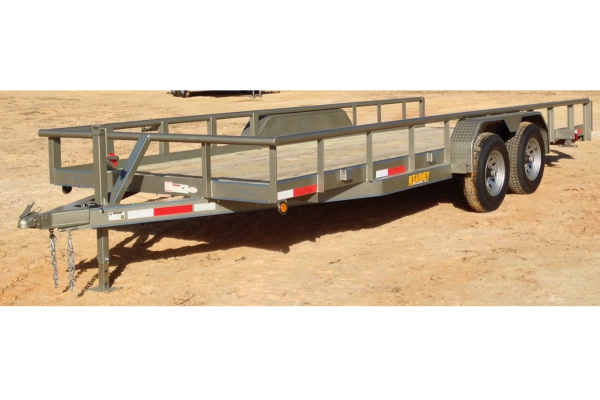

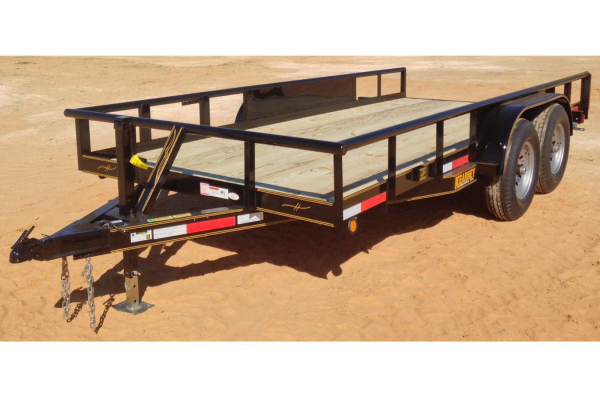

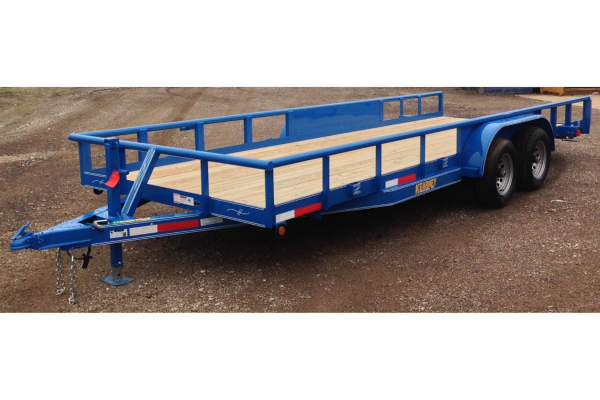

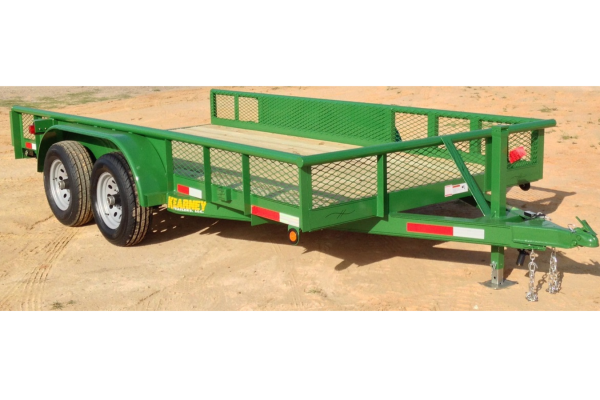

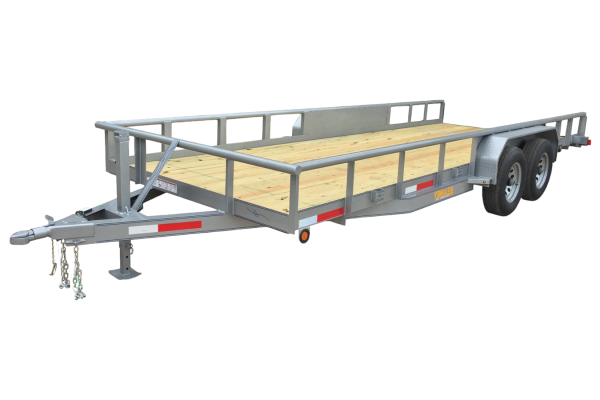

BUMPER TANDEM AXLE MEDIUM DUTY UTITILY 10,400lb GVWR

Model #: BTMEDUT 10,400lb GVWR

Standard Features

■ COUPLER: 2-5/16" 12.5K RAM W/ COUPLER HOLE COVER PLATE ■ BRAKE: ONE - ELECTRIC BRAKE W/ BREAK AWAY & CHARGER ■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON
■ SAFETY CHAIN: 1/4" CHAIN W/ SAFETY HOOK ■ TIRES: NEW ST225/75/R/15" RADIALS LOAD RANGE "D" 8-PLY ■ UPRIGHTS: 3" X 2" X 3/16" ANGLE IRON / 16" TALL
■ JACK: 7K SIDEWIND DROP LEG W/ SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE ■ WHEELS: 6 - HOLE POWDER COATED SILVER MODS ■ TOP RAILS: 2-3/8" PIPE RAILING, SQ-END W/ BOARD HOLDERS
■ PLUG: 7-WAY MOLDED HARNESS / GROUNDED TO FRAME
■ TIE DOWNS: SIX - 3" STAKE POCKETS (3-EA SIDE F&B)
■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE ■ RAMPS: 4' SLIDE IN ROLLED CHANNEL IRON RAMPS W/ HOLDERS * 2-RAMP HANGING LIPS ON BACK ■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS
■ TONGUE:5" CHANNEL IRON WRAP AROUND
■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST- * INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ SUSPENSION: EQUALIZER W/ 5 LEAVE EYE TO EYE SPRINGS SYSTEM
■ FRAME: 20'& SMALLER 4" X 3" X 1/4" ANGLE IRON * 24' - 5" X 3" X 1/4" ANGLE IRON
■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS * ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ AXLE: TWO - 5.2K AXLES / CAMBERED W/ ACCU-LUBE HUBS

STEP 1

Select A Trailer:

Model #	App. Empty Wt.	Description of Trailer Size	Price
BTMEDUT 8312	1350 #	6'11" X 12'	$
BTMEDUT 8314	1450 #	6'11" X 14'	$
BTMEDUT 8316	1650 #	6'11" X 16'	$
BTMEDUT 8318	1850 #	6'11" X 18'	$
BTMEDUT 8320	2050 #	6'11" X 20'	$

STEP 2

Select Additional Features:

Upgrade #	Optional Upgrades	Upgrade Price
CP2516RMAJ-BB CP2516RMAJ-BB	14K 2 5/16in ADJ RAM Coupler ILO 1 2.5K 2 5/16in Ram Coupler	$
SB-WP	WINCH PLATE - 8in CHANNEL IRON X 16in LONG X 15in TALL	$
ELEC4.4KWINCHPKG	4.4K BULLDOG ELECTRIC WINCH W/ BATTERY BOX BAT. & WINCH PLATE	$
ELEC7.8KWINCHPKG	7.8K BULLDOG ELECTRIC WINCH W/ BATTERY BOX BATTERY & WINCH PLATE	$
JK10KDL-7K	10K SPRING LOADED DROP LEG JACK ILO 7K DROP LEG JACK	$
AX52SCBRK	52K BRAKE ON SECOND AXLE	$
RPFUR5C-LB	5' CH FOLD UP RAMPS ILO 4' CH SLIDE IN RAMPS	$
RPKF-CHFURNODT	KICKER FEET ON CHANNEL FOLD UP RAMPS ON TRAILER W/NO DOVE TAIL	$
TG83HD	83" WIDE X 4' TALL - HEAVY DUTY TAILGATE 3X2 UPRIGHTS # 6 EX. METAL	$
TWTU235R6SM	ST235-80-R-16-10P-6H-SM ILO ST225-75-R-15-8P-6H-SM	$
SMSTMPS	SPARE MOUNT ON PASS. SIDE OF TRAILER IN FRONT OF FENDER	$
SP235-6-SM	SPARE ST 235-8-R16-8 PLY / 6 HOLE SILVER MOD	$
TD-DRWO	1/2" WELD ON D-RINGS	$

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now
