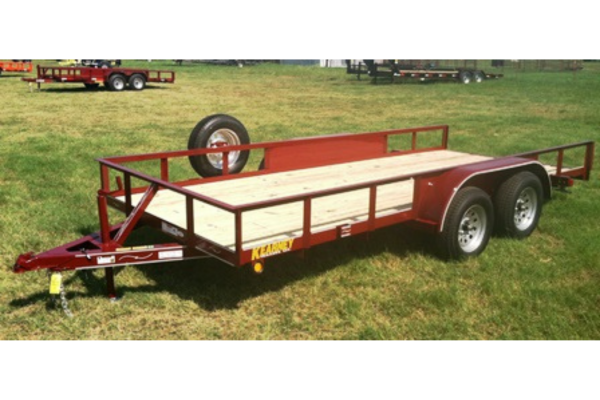

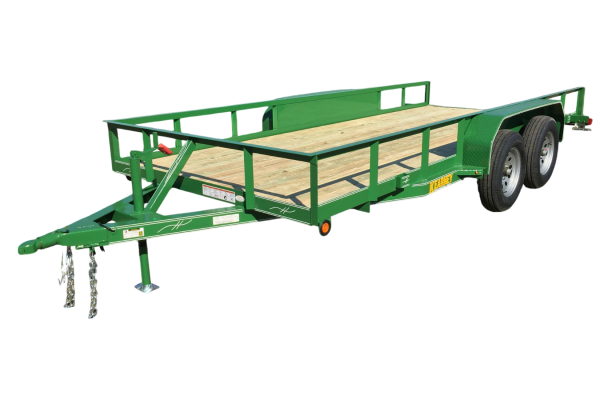

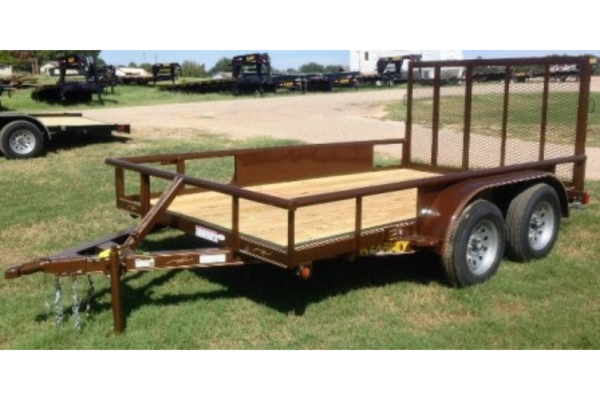

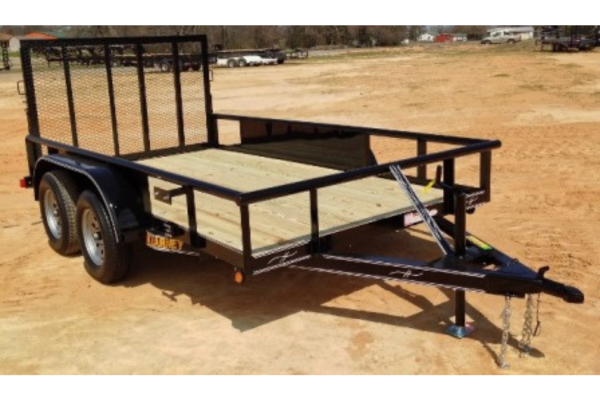

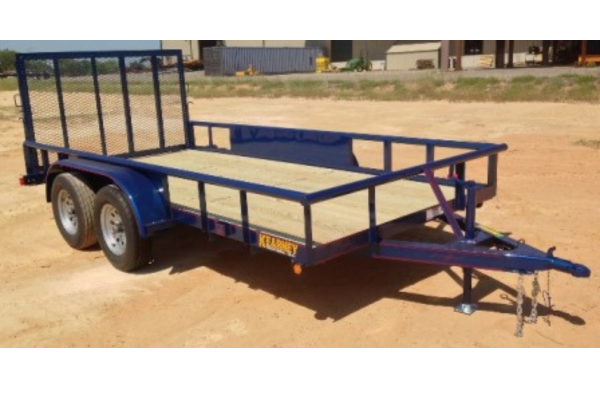

BUMPER TANDEM AXLE STANDARD DUTY UTILITY 7,000lb GVWR

Model #: BTSTDUT 7,000lb GVWR

Standard Features

■ COUPLER: 2" - 7K Ram W/Coupler Hole Cover Plate ■ SAFETY CHAIN: 1/4" Chain W/Safety Hooks ■ JACK: 2K Top Wind W/Interchangeable Pin On Sand Foot
Jack Is Set Back For Tailgate Opening Clearance
■ PLUG: 4 - Way Molded Plug Harness / Grounded To Frame ■ LIGHTS: "LED" Rubber Mounted Running, Stop, Turn & Clearance ■ FENDERS: 9" X 72" 14Ga Straight Tread Plate W/Smooth Backing
■ SUSPENSION: Equalizer W/4 Leave Eye To Eye Springs System ■ AXLES: Two - 3.5K Dexter Idlers /Cambered W/Accu-Lube Hubs ■ TIRES: New ST-205-75-R/15" Radials Load Range "C" 6-Ply
■ WHEELS: 5 - Hole Powder Coated Silver Mods / GM-5"-BP ■ TONGUE: 16' & Smaller - 4" Channel Iron
18' & Larger - 5" Channel Iron ■ FRAME: 4" X 3" X 1/4" Angle Iron
■ CROSSMEMBERS: 3" X 2" X 3/16" Angle Iron ■ UPRIGHTS: 2" X 2" X 1/8" Angle Iron / 15" Tall ■ TOP RAILS: 16'& Smaller 2"X2"X1/8" Ag Sq-End W/Board Holders
18'& Larger 3"X2"X3/16" Ag Sq-End W/Board Holders
■ FLOOR: #1 Pres Treated/2"X8" Pine Double Screwed/Per/Run ■ MISC.: Two - Ramp Hanging Lips On Back (No Ramps) ■ STICKERS: Warning & Safety & Reflective Kearney Logos
■ EXT. FINISH: Painted With A Newly Innovated Durable High Gloss
Acrylic Polyurethane Full Two-Component Finish ■ UNDERCOATING: Completely Coated w/A Durable Protective Finish ■ TRIM: Array of many colors to choose from
■ WARRANTY: A Limited Two Year Kearney Guarantee

STEP 1

Select A Trailer:

Model #	App. Empty Wt.	Description of Trailer Size	Price
BTSTDUT 7712	1075 #	6'5" X 12'	$
BTSTDUT 7714	1225 #	6'5" X 14'	$
BTSTDUT 7716	1400 #	6'5" X 16'	$
BTSTDUT 7718	1575 #	6'5" X 18'	$
BTSTDUT 7720	1750 #	6'5" X 20'	$
BTSTDUT 8310	915 #	6'11" X 10'	$
BTSTDUT 8312	1115 #	6'11" X 12'	$
BTSTDUT 8314	1265 #	6'11" X 14'	$
BTSTDUT 8316	1440 #	6'11" X 16'	$
BTSTDUT 8318	1615 #	6'11" X 18'	$
BTSTDUT 8320	1790 #	6'11" X 20'	$

STEP 2

Select Additional Features:

Upgrade #	Optional Upgrades	Upgrade Price
JK2KFUJT	2K FOLD UP JACK ILO 2K TOP WIND JACK	$
JK7KDL	7K DROP LEG SIDE WIND JACK ILO 2K TOP WIND JACK	$
TNWT	WRAP AROUND TONGUE	$
TR238PTR	2 3/8" PIPE TOP RAIL ILO 2"X2"X1/8" ANGLE TOP RAIL	$
AX35BRK1	3.5K BRAKE ONE AXLE W/ BRAKE AWAY & 7 WAY RV PLUG	$
TG	4' TALL TAILGATE	$
RPSRA4	4' 2" CHANNEL SLIDE IN RAMPS	$
SMSTM	SPARE TIRE MOUNT WELDED ON DRIVER OR PASSENGER SIDE	$
TD-DRWO	1/2" WELD ON D-RINGS	$
SP205-5-SM	SPARE 205-75-R15 5HOLE SILVER MOD	$

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now
