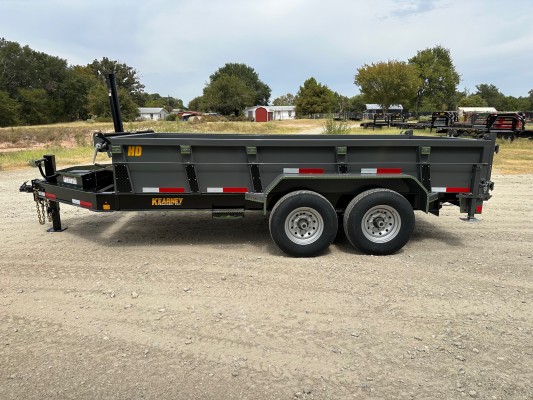

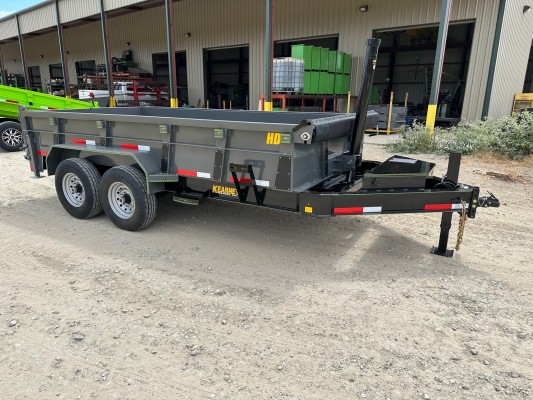

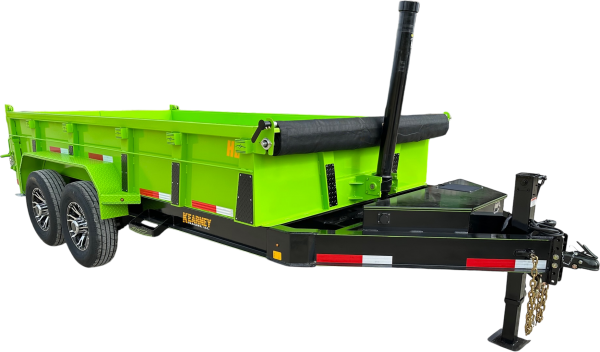

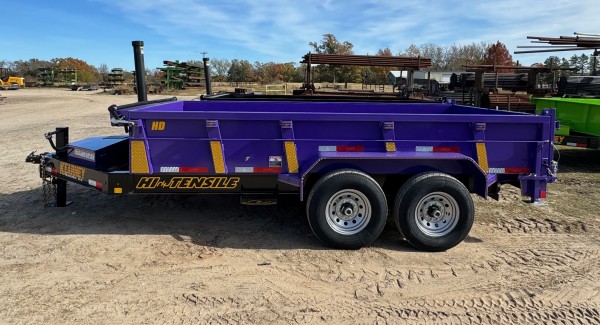

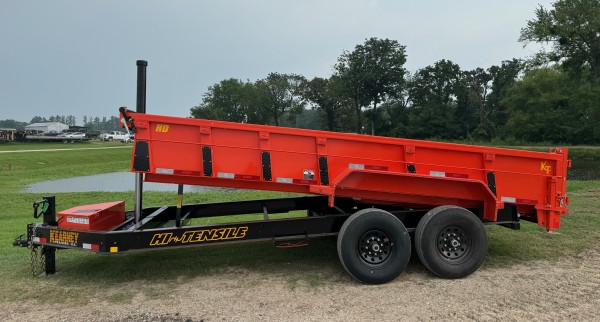

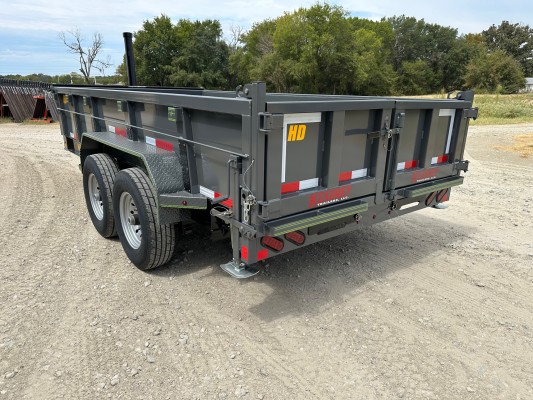

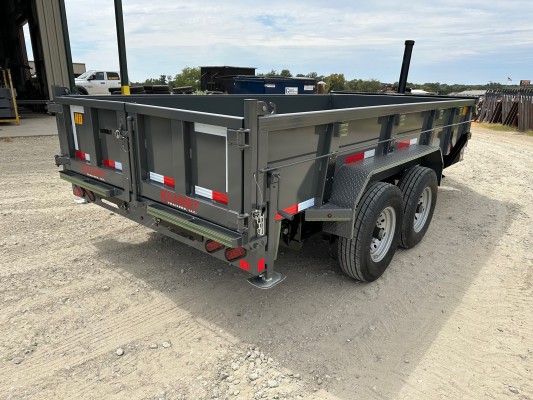

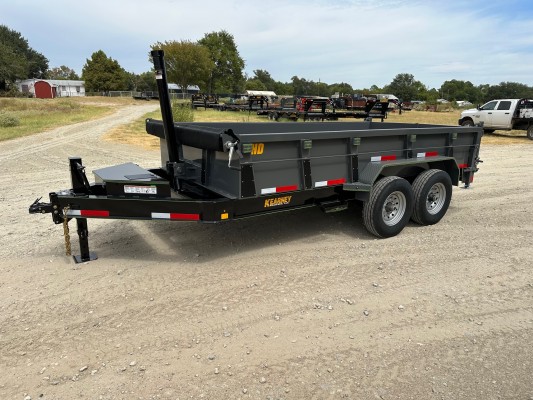

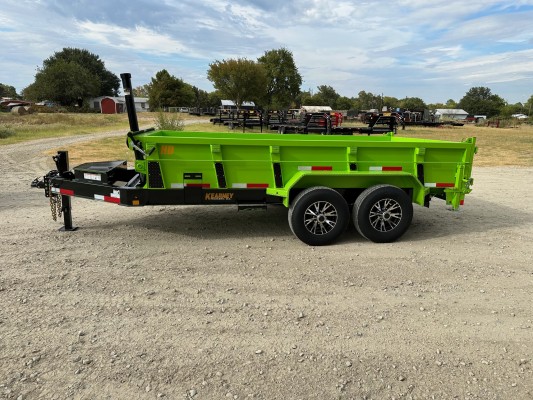

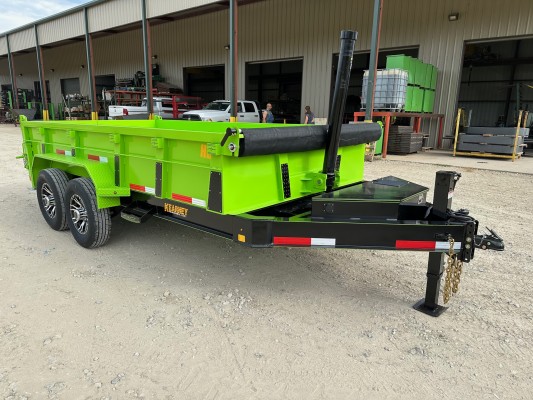

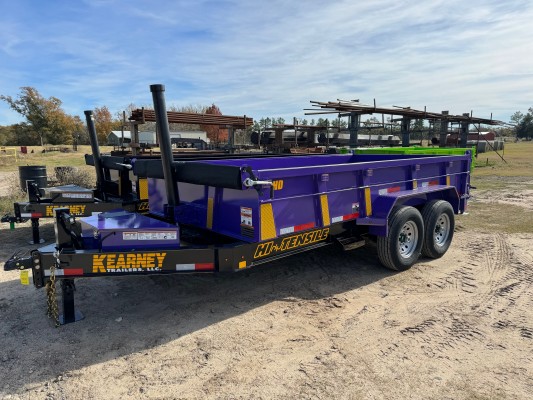

BUMPER PULL TANDEM AXLE 83" WIDE "LOW-PROFILE" HYDRAULIC DUMP TRAILER 14,000lb GVWR

Model #: BTHDDUMP

Standard Features

■ COUPLER: 2-5/16" FORGED ADJUSTABLE 5/POSITION■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY

■ FLOOR: 3/16" / 7 GA SOLID SMOOTH SHEET METAL

■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS■ CROSSMEMBERS: 3" CHANNEL, 16" ON CENTERS

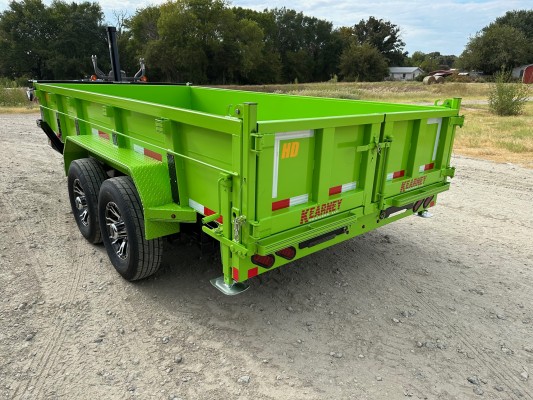

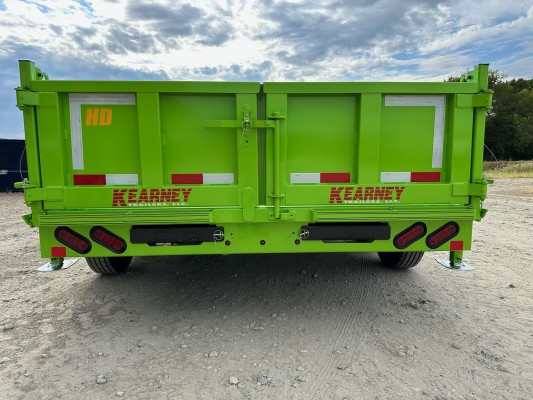

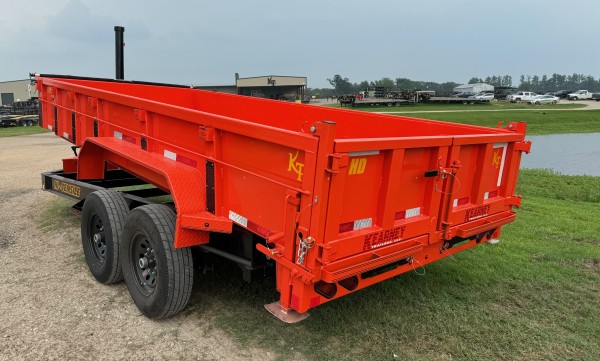

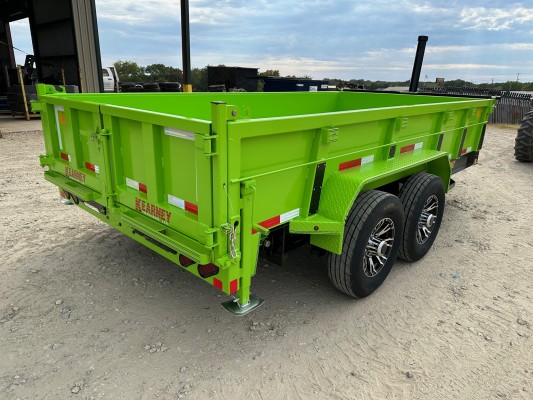

■ JACK: 12K DROP LEG - Bolt On■ TAILGATE: DOUBLE ACTION (DUAL SWING OUT/SPREADER GATE)

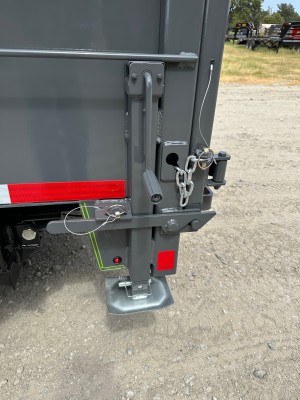

■ STABILIZERS: TWO - 8K LOADING DROP LEG JACK ON BACK CORNERS

■ PLUG: 7 - WAY MOLDED PLUG HARNESS■ TIE DOWNS: 4 -  5/8" D-RINGS On Insdie, 1/2" TIE ROD AROUND THE OUTSIDE■ WIDTH: 83" INSIDE BOX

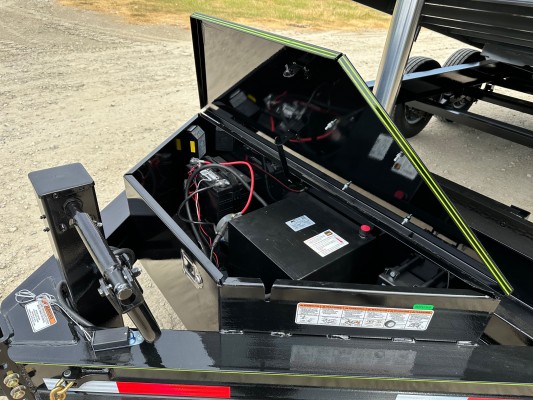

■ LIGHTS: LED RUNNING, STOP, TURN & RUBBER MOUNTED CLEARANCE■ STORAGE/RACK: TONGUE MOUNTED BOX FOR PUMP UNIT & BATTERY BOX, SPARE RACK, SHOVEL STORAGE TRAY

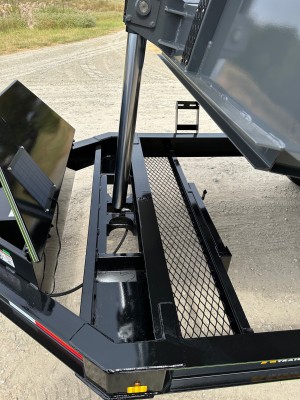

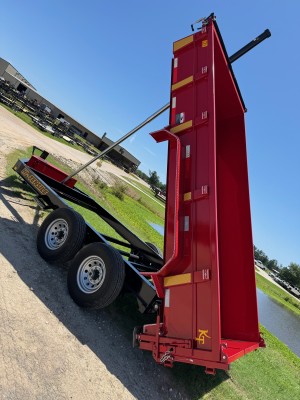

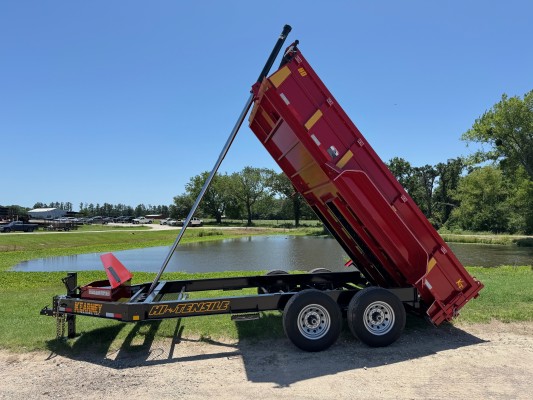

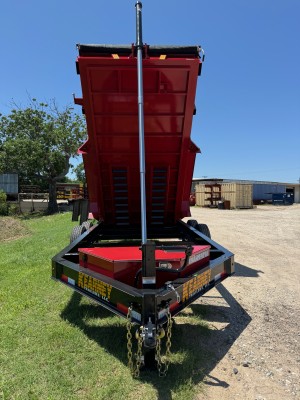

■ LIFT: 12-TON - TELESCOPIC HOIST ON FRONT - ELCT/HYD.

■ FENDERS: 9" X 72" HD STRAIGHT TREAD PLATE

■ BATTERY: DEEP CYCLE 12v W/110v & SOLAR PANNEL CHARGERS

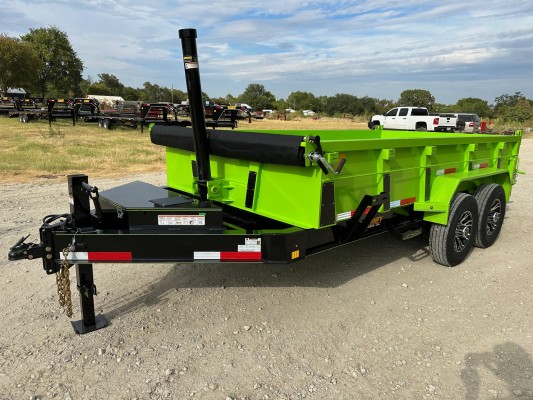

■ TARP:TARP: CRANK STYLE ROLL TARP

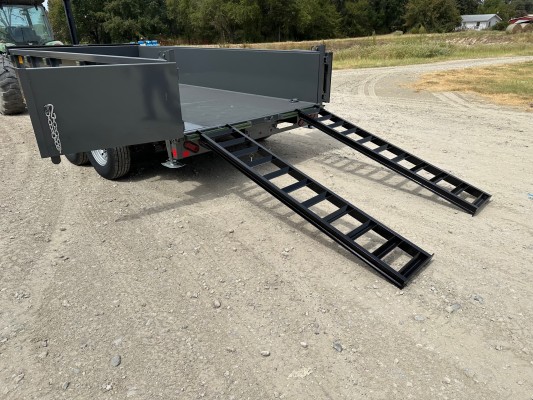

■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM■ RAMPS: 7' SLIDE IN RAMPS■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS

■ SIDES: 24" - 10 GA SOLID SMOOTH SHEET METAL, W/ 3" X 2" X 3/16" WALL RECTANGULAR TUBE TOPRAIL

■ EXT. FINISH: "BLACK" DURABLE HIGH GLOSS FINISH
■ BRAKES: TWO - ELECTRIC BRAKE W/BREAK AWAY & CHARGER

■ FRAME: 8" I-BEAM , W/SAFETY ARM FOR DUMP BED, STEP ON BOTH SIDES OF FRAME



■ WARRANTY: A FULL "LIMITED ONE YEAR" KEARNEY GUARANTY


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTHDDUMP 8312 4450 # 6'11" X 12'0" $
  BTHDDUMP 8314 4950 # 6'11" X 14'0" $
  BTHDDUMP 8316 5080 # 6'11" X 16'0" $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  AX80DRUM2BDUMP-83 83" - 8K AXLES, TWO DRUM BRAKES, W/ST-235-85-R-16-14PLY RADIALS/8-H SILVER MODS ON DUMP $
  CP14PHAJ-2516AJ 14K ADJ PINTLE HITCH ILO 14K ADJ RAM COUPLER FOR DUMP TRAILERS $
  SDDPHD3FTSIDES 3' HIGH SIDES ON HEAVY DUTY LOW-PROFILE DUMP TRAILER $
  SDDPHD4FTSIDES 4' HIGH SIDES ON HEAVY DUTY LOW-PROFILE DUMP TRAILER $
  SP2358016-R-10P/8SM SPARE ST-235-80-R-16-10PLY RADIAL / 8 HOLE - SILVER MOD $
  SP2358016-R-14P/8SM SPARE ST-235-80-R-16-14PLY RADIAL / 8 HOLE - SILVER MOD $
  TD-DRWO-5/8 5/8" WELD ON D-RINGS - EACH $
  TWTA235R1610P/8HBLK TA/BLACK-M ST235-80-R-16-10PLY /8H BLACK MODS ILO ST235-80-R-16-10PLY /8H SILVER MODS $
  TWTA235R1614P/8SM TA/ST235-80-R-16-14PLY /8H SILVER MODS ILO ST235-80-R-16-10PLY /8H SILVER MODS $
  TWTA235R1610P/8HALUM TA/ALUMINUM ST235-80-R-16-10PLY /8H ALUM T07 ILO ST235-80-R-16-10PLY /8H SILVER MODS $
  TWTA21517.516P/10PLY TA/ST 215-75-R-17.5-16PLY /8H HD SINGLE WHEEL ILO ST 235-80-R-16-10PLY /8H SILVER MODS $
