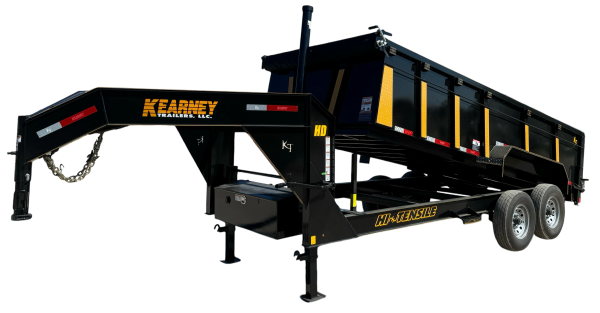

GOOSENECK TANDEM AXLE 83" WIDE "NEW STYLE" HYDRAULIC DUMP TRAILER 14,000lb GVWR

Model #: GTDP140

Standard Features

■ COUPLER: 2-5/16" 25K COUPLER ADJ. W/PIN & 2 SET SCREWS	■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY	■ FLOOR: 3/16" / 7 GA SOLID SMOOTH SHEET METAL
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS	■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS	■ CROSSMEMBERS: 3" CHANNEL, 16" ON CENTERS
■ JACK: 12K DROP LEG - Bolt On	■ TAILGATE: DOUBLE ACTION (DUAL SWING OUT/SPREADER GATE)	■ STABILIZERS: TWO - 8K LOADING DROP LEG JACK ON BACK CORNERS
■ PLUG: 7 - WAY MOLDED PLUG HARNESS	■ TIE DOWNS: 4 -  5/8" D-RINGS On Insdie, 1/2" TIE ROD AROUND THE OUTSIDE	■ WIDTH: 83" INSIDE BOX
■ LIGHTS: LED RUNNING, STOP, TURN & RUBBER MOUNTED CLEARANCE	■ STORAGE/RACK: MOUNTED BOX FOR PUMP UNIT & BATTERY BOX, SPARE RACK, SHOVEL STORAGE TRAY	■ LIFT: 12-TON - TELESCOPIC HOIST ON FRONT - ELCT/HYD.
■ FENDERS: 9" X 72" HD STRAIGHT TREAD PLATE	■ BATTERY: DEEP CYCLE 12v W/110v & SOLAR PANNEL CHARGERS	■ TARP:TARP: CRANK STYLE ROLL TARP
■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM	■ RAMPS: 7' SLIDE IN RAMPS	■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS	■ SIDES: 24" - 10 GA SOLID SMOOTH SHEET METAL, W/ 3" X 2" X 3/16" WALL RECTANGULAR TUBE TOPRAIL	■ EXT. FINISH: "BLACK" DURABLE HIGH GLOSS FINISH
■ BRAKES: TWO - ELECTRIC BRAKE W/BREAK AWAY & CHARGER	■ FRAME: 8" I-BEAM , W/SAFETY ARM FOR DUMP BED, STEP ON BOTH SIDES OF FRAME	■ WARRANTY: A FULL "LIMITED ONE YEAR" KEARNEY GUARANTY
