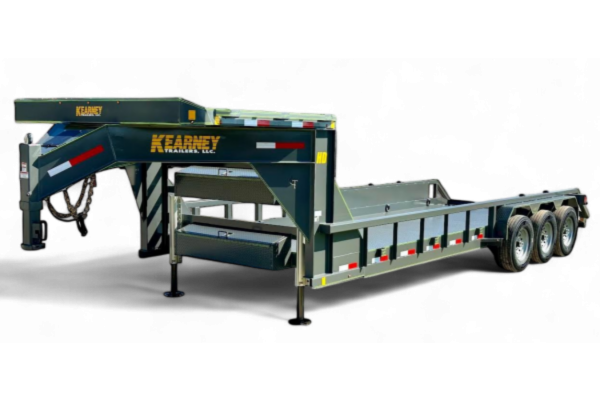

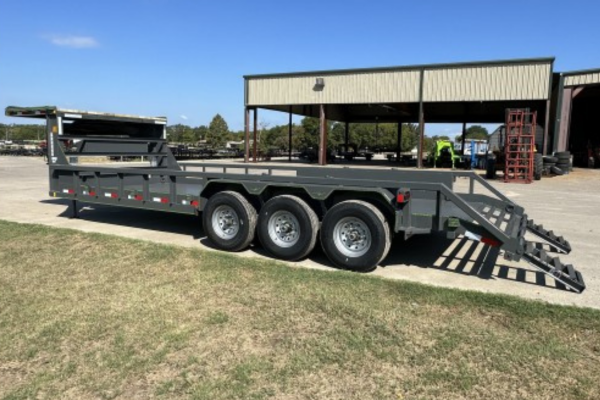

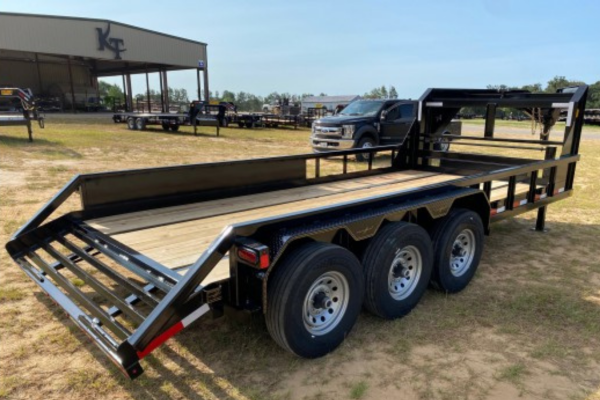

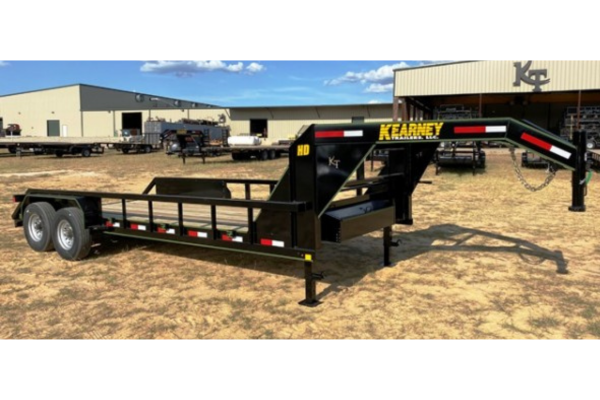

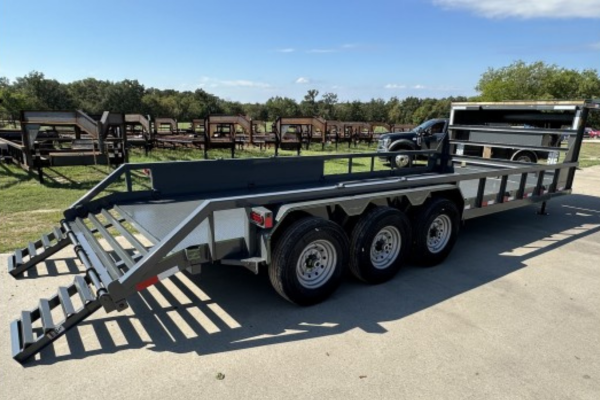

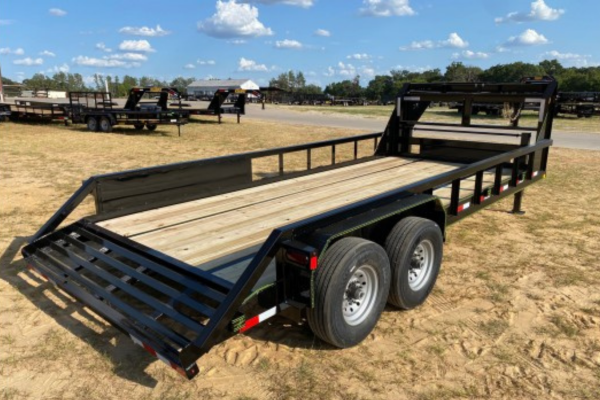

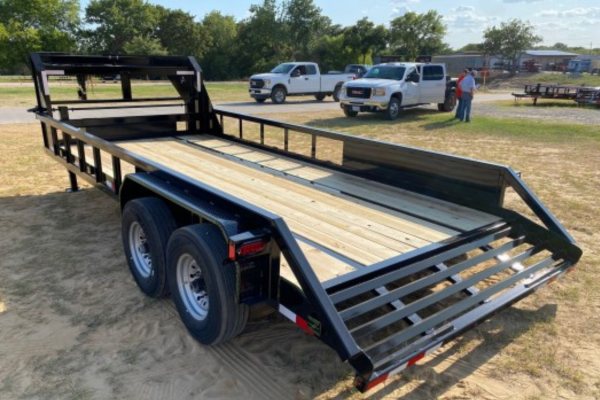

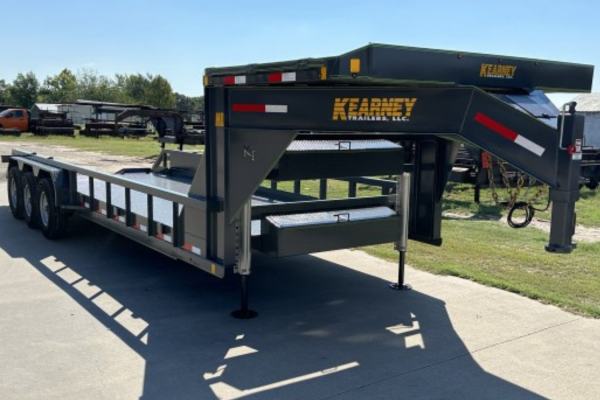

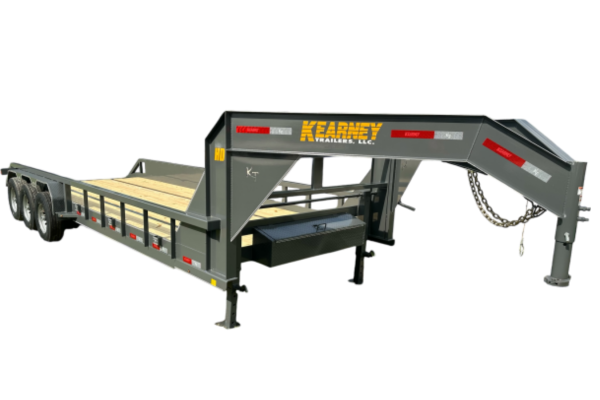

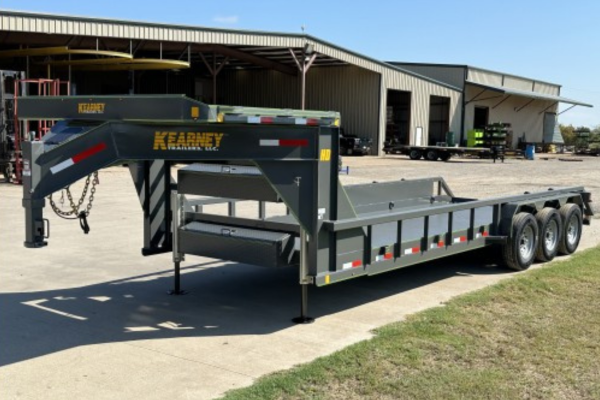

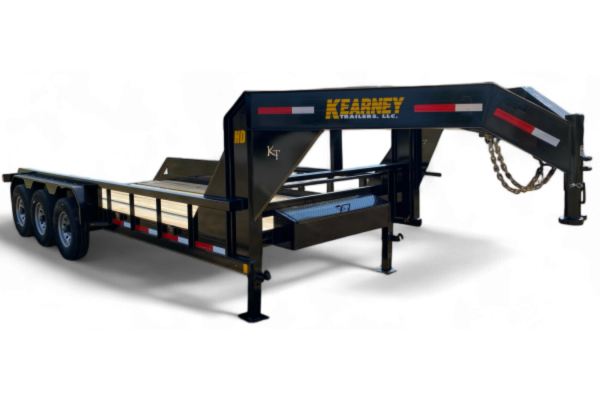

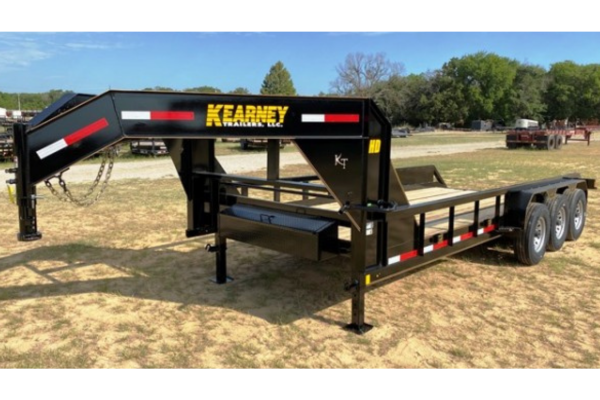

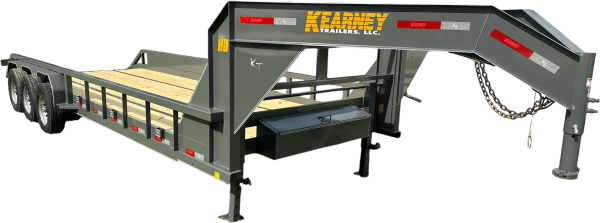

96"W GOOSENECK TANDEM AXLE HEAVY DUTY LOWBOY PIPE TOP UTILITY (FARM USE ONLY)

Model #: GTHDLBUT-96 14,000lbs - 21,000lbs GVWR

Standard Features

Trailer Specifications

( THIS TRAILER IS FOR FARM USE ONLY )

INSIDE WIDTH AT TOPRAIL 96"

OVERALL OUTSIDE WIDTH 9'8"

■ COUPLER: 2-5/16" - GN Adj. W/Safety Pin & 2 - Set Screws	■ SAFETY CHAIN: 3/8" Chain W/Safety Hooks	■ JACK: Two - 12K Spring Loaded Drop Leg W/Sand Foot
■ PLUG: 7 - Way Molded Plug Harness / Grounded To Frame	■ LIGHTS: "LED" Rubber Mounted Running, Stop, Turn & Clearance	■ FENDERS: 14GA Straight Tread Plate W/10GA Smooth Backings
■ SUSPENSION: Equalizer W/5 Leave Slipper Springs System	■ AXLES: Two / Three - 7K Dexter Axles/Cambered W/Accu-Lube Hubs	■ BRAKES: Electric Brake ON All Axles W/Break Away & Charger
■ TIRES: New ST-235-80-R-16" Radials Load Range "G" 14-Ply	■ WHEELS: 8 - Hole Powder Coated Silver Mods	■ SPARE MOUNT: Securely Mounted Inside Neck (Mount Only)
■ TIE DOWNS: 3" Stake Pockets	■ STORAGE: Toolbox W/Lockable Lid Between GN Risers	■ DOVETAIL: 2' Heavy Duty Drive Up Self Cleaning Dovetail
■ NECK: 12" I-Beam Neck & 12" I-Beam Risers	■ FRAME: Tandem - AX 5" X 3" X 5/16" Angle Iron Triple - AX 6" X 4" X 3/8" Angle Iron	■ CROSSMEMBERS: 3" Channel Iron On 16" Centers 3" Channel Tie Runners From Front To Back

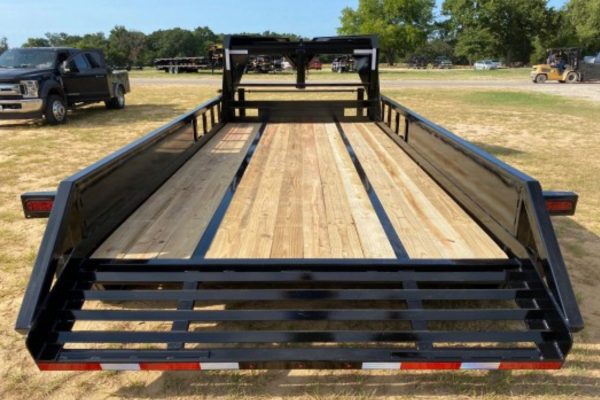

■ UPRIGHTS: 3"' X 2" X 3/16" Angle & 3" X 3/16"T Sq Tube / 20" Tall	■ TOP RAILS: 3" X 3/16"T Square Tubing, Slope Back	■ FLOOR: #1 Pres Treated/2"X8" Pine Double Screwed/Per/Run
■ STICKERS: Warning & Safety/Dot & Reflective Kearney Logos	■ EXT. FINISH: Painted With A Newly Innovated Durable High Gloss Acrylic Polyurethane Full Two-Component Finish	■ UNDERCOATING: Completely Coated w/A Durable Protective Finish
■ TRIM: Array of many colors to choose from	■ WARRANTY: A Limited One Year Kearney Guarantee

STEP 1

Select A Trailer:

Model #	App. Empty Wt.	Description of Trailer Size	Price
GTHDLBUT-96 16	4450 #	8'0" X 16'0" Gooseneck Tandem Axle Heavy Duty Lowboy Square Tube Top	$8,525.00
GTHDLBUT-96 20	4850 #	8'0" X 20'0" Gooseneck Tandem Axle Heavy Duty Lowboy Square Tube Top	$8,965.00
GTHDLBUT-96 20TR	5450 #	8'0" X 20'0" Gooseneck Triple Axle Heavy Duty Lowboy Square Tube Top	$10,925.00
GTHDLBUT-96 24TR	6550 #	8'0" X 24'0" Gooseneck Triple Axle Heavy Duty Lowboy Square Tube Top	$11,995.00

STEP 2

Select Additional Features:

Upgrade #	Optional Upgrades	Upgrade Price
CP2516SQ30K-2516R25K	2-5/16" - 30K SQUARE GN COUPLER ILO 2-5/16" - 25K ROUND GN COUPLER	$170.00
ELSOLARCHARG-7.5A	7.5 AMP SOLAR PANEL CHARGE KIT FOR 12V BATTERY	$195.00
FLDPF-96GNLB-16	96"WX16'L - 1/8" DIAMOND PLATE FLOOR IN GOOSENECK LOWBOY 96" WIDE	$1,400.00
FLDPF-96GNLB-20	96"WX20'L - 1/8" DIAMOND PLATE FLOOR IN GOOSENECK LOWBOY 96" WIDE	$1,750.00
FLDPF-96GNLB-24	96"WX24'L - 1/8" DIAMOND PLATE FLOOR IN GOOSENECK LOWBOY 96" WIDE	$1,850.00
GN6X8DON-FLUSH	FLUSH - 6' X 8' DECK OVER GOOSENECK 5"CHANNEL SIDE RAILS W/45-DEG CORNER & 8"TALL FRONT	$1,450.00
GN6X8DON-LIP	SIDE LIPS - 6' X 8' DECK OVER GOOSENECK 5"X3"AG SIDE RAILS 45-DEG CORNER & 8"TALL FRONT	$1,450.00
JK12KHYD2-2/12K	2/12K HYDRAULIC DROP LEG JACKS W/ BATTERY & BATTERY BOX ILO 2 12K DROP LEG JACK	$2,500.00

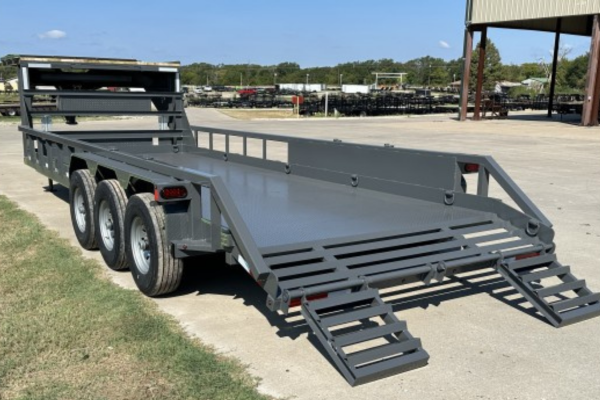

RPFLIPR2C-96"-GNLB	24"L X 22"W FLIP OVER RAMPS ON 96" WIDE GN LOWBOY	$375.00
SB2NDCHBOXINNECK-55	SECOND 55"W CHAIN TRAY MOUNTED INSIDE OF NECK ON GN LB/EQH ABOVE OTHER BOX	$450.00

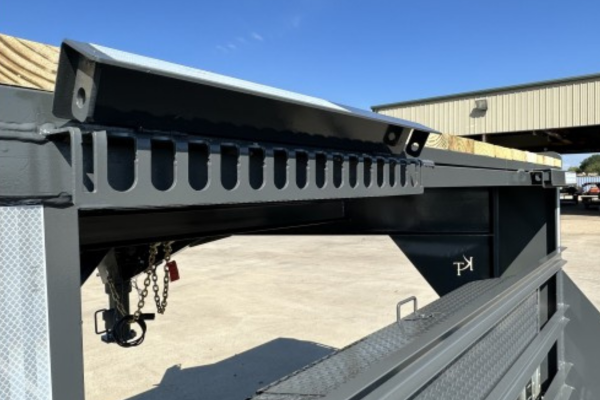

SBCHAINRACK-15	24" CHAINRACK WITH LOCKABLE LID-HOLDS 15 HOOKS WELDED TO TRAILER (EA) PLACEMENT IN NOTES	$175.00
SP2358016-R-14P/8SM	SPARE ST-235-80-R-16-14PLY RADIAL / 8 HOLE - SILVER MOD	$235.00
SP215-75-R-17.5-16P	SPARE ST 215-75-R-17.5-16P RADIAL / 8 HOLE - STEEL WHEEL	$280.00
TD-DRWO-5/8	5/8" WELD ON D-RINGS - EACH	$25.00
TWTA21517.516P/14PLY	TA/ST 215-75-R-17.5-16PLY /8H HD SINGLE WHEEL ILO ST 235-80-R-16-14PLY /8H SILVER MODS	$525.00
TWTR21517.516P/14PLY	R/ST 215-75-R-17.5-16PLY /8H HD SINGLE WHEEL ILO ST 235-80-R-16-14PLY /8H SM (TRIPPLE)	$625.00

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now

903-473-3405

Building Your Trust One Trailer At A Time
