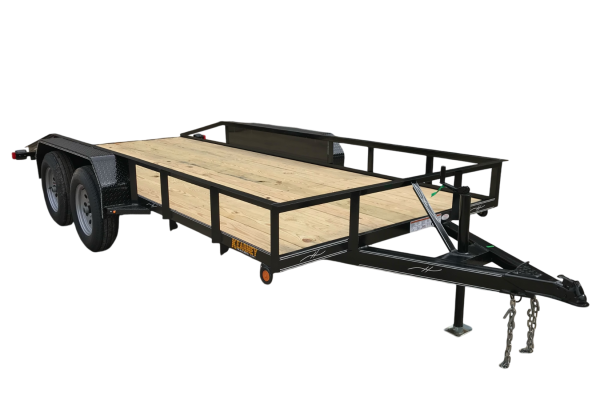

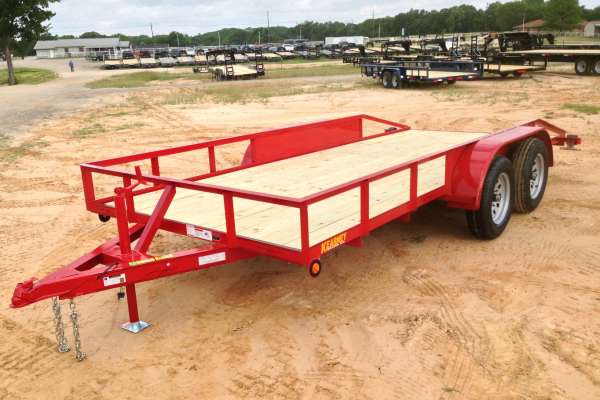

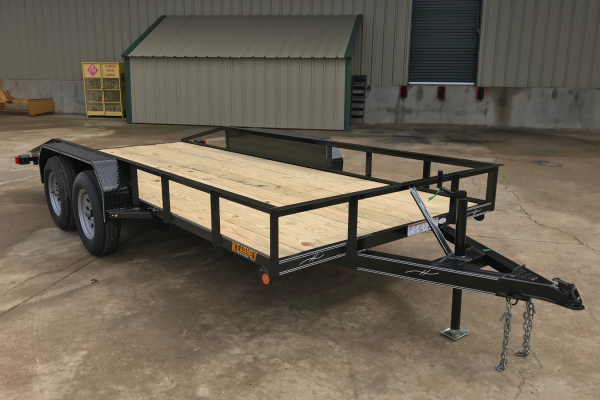

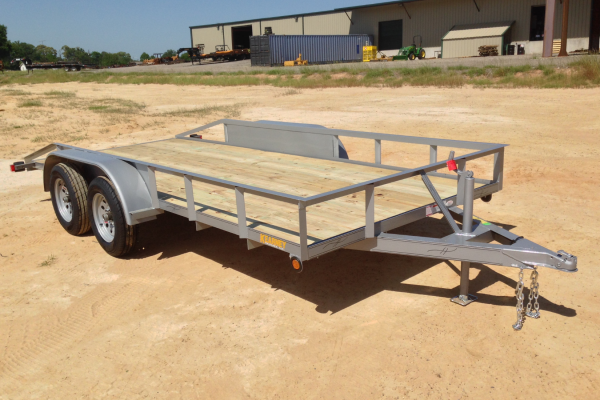

Model #: BTLTDUT 4,500lb GVWR
■ COUPLER: 2" - 7K RAM COUPLER W/COUPLER HOLE COVER PLATE | ■ TIRES: NEW ST205/75/R/15" RADIALS LOAD RANGE "C" 6-PLY | ■ MISC: RAMP HANGER LIPS ON BACK |
■ SAFETY CHAIN: 1/4" CHAIN W/SAFETY HOOKS | ■ WHEELS: 5 - HOLE POWDER COATED SILVER MODS / GM-5"-BP | ■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS |
■ JACK: 2K TOP WIND W/ INTERCHANGEABLE PIN ON SAND FOOT * JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE | ■ TONGUE: 4" CHANNEL IRON | ■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST- * INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION |
■ PLUG: 4 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME | ■ FRAME: 3" X 2" X 3/16" ANGLE IRON | ■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS * ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH |
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE | ■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON | ■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH |
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS | ■ UPRIGHTS: 2" X 2" X 1/8" ANGLE IRON / 13" TALL | ■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING |
■ SUSPENSION: EQUALIZER W/ 4-LEAVE EYE-TO-EYE SPRINGS SYSTEM | ■ TOP RAILS: 2" X 2" X 1/8" ANGLE IRON (SLOPE BACK) | ■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE |
■ AXLES: TWO - 3.5K IDLER AXLE /CAMBERED W/ACCU-LUBE HUBS | ■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN |
