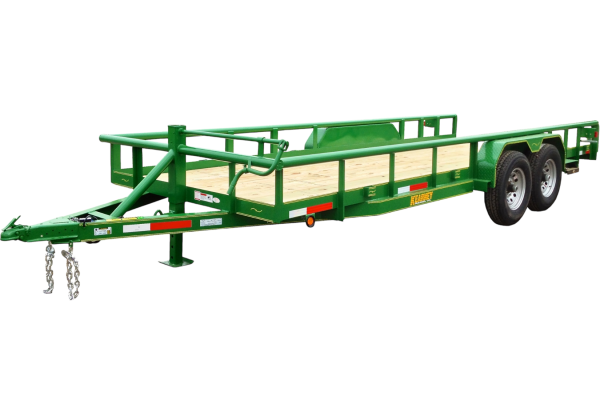

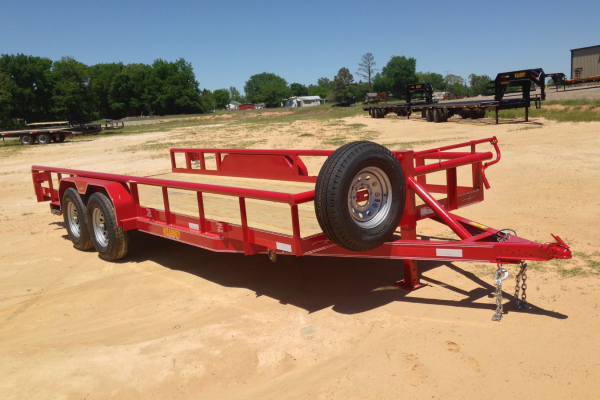

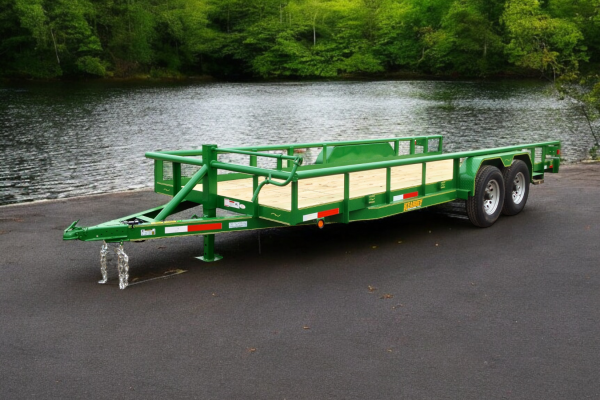

Model #: BTHDLBUT 14,000lb GVWR
■ RAMPS: 4' Hd 3" Channel Iron Slide In Ramps W/Holders
| ■ COUPLER: 2-5/16" 14K Ram W/Coupler Hole Cover Plate | ■ SAFETY CHAIN: 3/8" Chain W/Safety Hooks | ■ JACK: 12K Spring Loaded Drop Leg Jack W/Sand Foot Jack Is Set Back For Tailgate Opening Clearance |
| ■ PLUG: 7 - Way Molded Plug Harness / Grounded To Frame | ■ LIGHTS: "LED" Rubber Mounted Running, Stop, Turn & Clearance | ■ FENDERS: 9" X 72" 14Ga Straight Tread Plate W/Smooth Backing |
| ■ SUSPENSION: Equalizer W/5 Leave Slipper Springs System | ■ AXLES: Two - 7K Dexter Axles / Cambered W/Accu-Lube Hubs | ■ BRAKES: One - Electric Brake W/Break Away & Charger |
| ■ TIRES: New ST-235-80-R-16" Radials Load Range "E" 10-Ply | ■ WHEELS: 8 - Hole Powder Coated Silver Mods | ■ TIE DOWNS: 6 - 3"Stake Pockets (3 - Ea. Side F&B) |
| ■ TONGUE: 6" Channel Iron Wrap Around | ■ FRAME: 20' & Smaller 5" X 3" X 1/4" Angle Iron 22' & 24' - 5"' X 3"' X 5/16" Angle Iron 26' & Larger 6" X 4" X 3/8" Angle Iron | |
| ■ CROSSMEMBERS: 4" X 3" X 1/4" Angle Iron On 24" Centers | ■ UPRIGHTS: 3" X 2" X 3/16" Angle Iron / 20" Tall | ■ TOP RAILS: 24' & Smaller 3" Pipe Sq-End W/Board Holders 26' & Larger 3" Sq-Tubing Sq-End W/Board Holders |
| ■ FLOORS: #1 Pres Treated/2"X8" Pine Double Screwed/Per/Run | ■ STICKERS: Warning & Safety/Dot & Reflective Kearney Logos | ■ EXT. FINISH: Painted With A Newly Innovated Durable High Gloss Acrylic Polyurethane Full Two-Component Finish |
| ■ UNDERCOATING: Completely Coated w/A Durable Protective Finish | ■ TRIM: Array of many colors to choose from | ■ WARRANTY: A Limited Two Year Kearney Guarantee |
