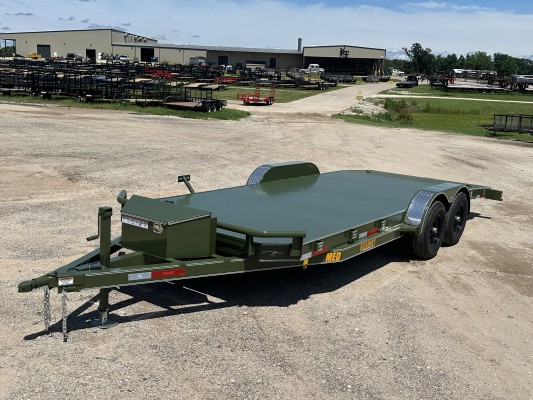

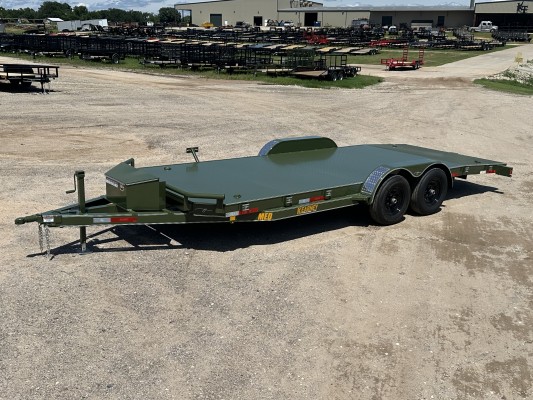

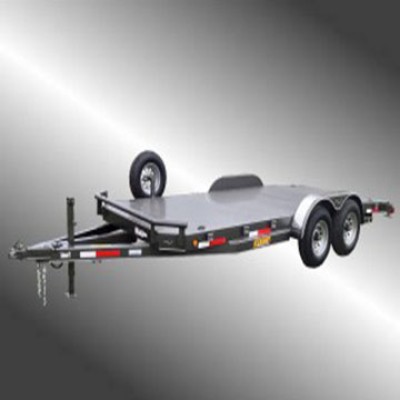

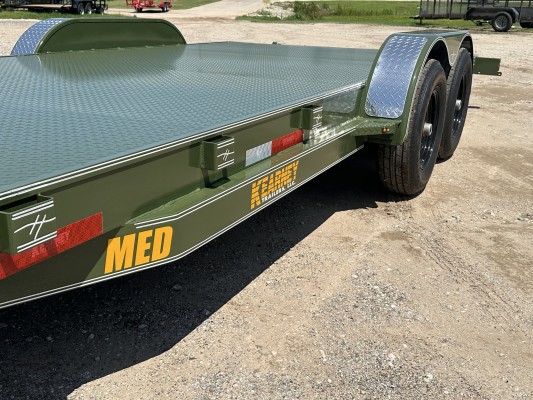

BUMPER TANDEM AXLE MEDIUM DUTY STEEL FLOOR CAR HAULER 10,400lb GVWR

Model #: BTMEDSFCH 10,400lb GVWR

Standard Features

■ Coupler: 2-5/16" - 12.5K Ram w/ Hole Cover Plate■ Tires: New ST225/75/R/15" Radial Load Range "D" 8-Ply

■ Dove Tail: 4' - For Easy Low To The Ground Loading

■ Safety Chains: 1/4" Chain w/ Safety Latching Hooks■ Wheels: 6- Hole Powder Coated Silver Mods

■ Stickers: Warnings & Safety/ DOT & Reflective  Kearney Logos

■ Jack: 7K Sidewind Drop Leg W/ Sand Foot, Set In Center■ Tie Downs: 3" Stake Pockets(16' & Smaller-10)(18'12)(20'-14) * Four- Weld On Top Of The Floor D-Rings

■Est Prepping: 2 Stage Degreasing And Acid Phosphate Wash W/ Rust- * Inhibitor To Ensure Maximum Paint Adhesion

■ Plug: 7 - Way Molded Plug Harness /Grounded To Frame■ Ramps: 5' Slide In Rolled Channel Iron W/ Holders

■ Exterior Finish: Painted With A Newly Inovated, Durable High Gloss * Acrylic Polyurethane Full Polyurethane Full Two-Component Finish

■ Lights: "LED" Running, Stop, Turn, and Clearance■ Tongue: 20' & Smaller 5"X3"X1/4" Angle Iron Wrap Around * 22' & Larger 5"X3"X 5/16" Angle Iron Wrap Around■ Undercoating: Completely Coated W/ A Durable Protective Finish
■ Fenders: 9" x 72" Tear Drop Smooth W/  Smooth Backing Plates

■ Frame: 6" X 8.2# Channel Iron W/ Front Corners 45ed

■ Trim: Standard "White" Or "Black"  Pin Striping* Chrome Gravel Gaurds On Front Of Fenders

■ Suspension: Equalizer W/ 5-Leave Eye-to-Eye Springs System

■Crossmembers: 3" x 2" x 3/16" Angle Iron On 24" Centers

■ Warranty: A Limited Two Year Kearney Guarantee

■ Axles: Two - 5.2K Axles Cambered & Accu-Lube Hubs

■ Bump Rails: 2-3/8" Pipe Bump Rail / 8" Tall


■ Brake: One rear -Electric Brake w/ Break Away & Charger

■ Floor: 1/8" Steel Diamond Tread Plate Sheet Metal


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTMEDSFCH 8312 1550# # 6'11" x 12' $
  BTMEDSFCH 8314 1650# # 6'11" x 14' $
  BTMEDSFCH 8316 1750# # 6'11" x 16' $
  BTMEDSFCH 8318 2150# # 6'11" x 18' $
  BTMEDSFCH 8320 2550# # 6'11" x 20' $
  BTMEDSFCH 8322 2850# # 6'11" x 22' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2516RMAJ-BB 14K 2 5/16in ADJ RAM Coupler ILO 1 2.5K 2 5/16in Ram Coupler $
  SB-WP WINCH PLATE - 8in CHANNEL IRON X 16in LONG X 15in TALL $
  SBBPTBXOT V-STYLE TOOL BOX MOUNTED ON TONGUE PAINT TO MATCH $
  ELEC4.4KWINCHPKG 4.4K BULLDOG ELECTRIC WINCH W/ BATTERY BOX BAT. & WINCH PLATE $
  ELEC7.8KWINCHPKG 7.8K BULLDOG ELECTRIC WINCH W/ BATTERY BOX BAT. & WINCH PLATE $
  JK10KDL-7K 10K SPRING LOADED DROP LEG JACK ILO 7K DROP LEG JACK $
  RS83RK 83" WIDE 44" TALL ROCK SHIELD WITH CHROME GRAVEL GUARD $
  AX52SCBRK 52K BRAKE ON SECOND AXLE $
  TWTU235R6SM ST235-80-R-16-10P-6H-SM ILO ST225-75-R-15-8P-6H-SM $
  SMSTMCCHPS 3" CHANNEL SPARE TIRE MOUNT ON PASNGR SIDE IN FRONT OF FENDER $
  SP225-6-SM SPARE ST-225-75-R-8P/ 6 HOLE SILVER MOD $
  SP235-6-SM SPARE ST 235-80-R16-10 PLY / 6 HOLE SILVER MOD $
