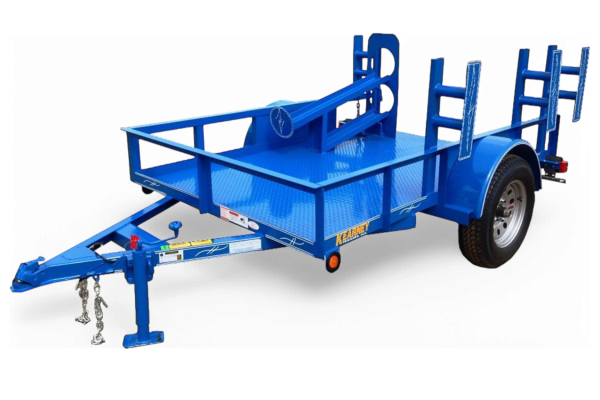

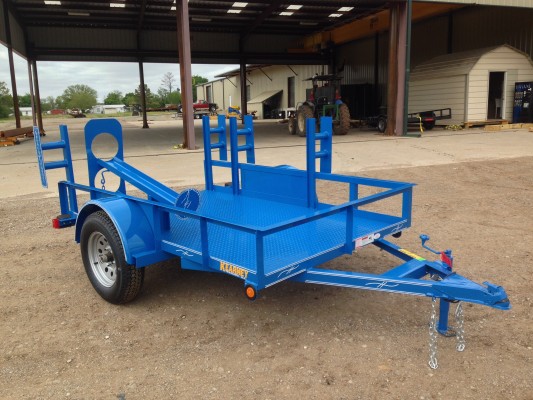

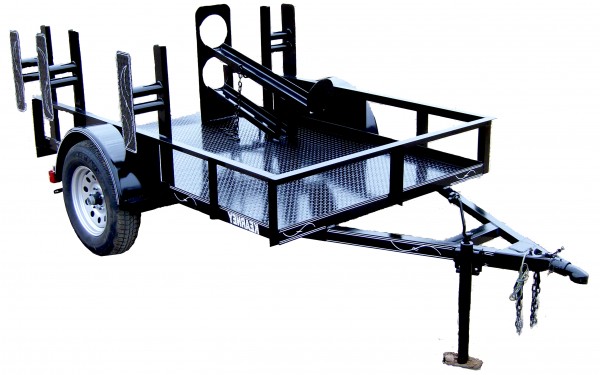

BUMPER SINGLE AXLE STANDARD DUTY WELDING TRAILER 3500lb GVWR

Model #: BSSTDWT 3,500lb GVWR

Standard Features

■ COUPLER: 2" - ATWOOD W/COUPLER HOLE COVER PLATE■ TIRES: NEW ST205/75/R/15" RADIALS LOAD RANGE "C" 6-PLY■ STORAGE/RACK: ONE - OXYGEN AND ACETYLENE BOTTLE STORAGE RACK *FOUR - ROLL UP RACKS FOR - LEADS, HOSE & CORD
■ SAFETY CHAIN: 1/4" CHAIN W/SAFETY HOOKS■ WHEELS: 5-HOLE POWDER COATED SILVER MODS / GM-5"-BP■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS
■ JACK: 2K TOP WIND W/INTERCHANGEABLE PIN ON SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE■ TONGUE: 5'X 12'& SMALLER - 3" X 2" X 3/16" ANGLE IRON *5'X 14'& ALL 77"WIDE - 4" X 3" X 1/4" ANGLE IRON■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ PLUG: 4 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ FRAME: 3" X 2" X 3/16" ANGLE IRON■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ FENDERS: 9" X 32" ROLLED SMOOTH W/SMOOTH BACKING PLATES■ UPRIGHTS: 2" X 2" X 1/8" ANGLE IRON / 13" TALL■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ SUSPENSION: 4-LEAVE EYE-TO-EYE SPRINGS SYSTEM■ TOP RAILS: 2" X 2" X 1/8" ANGLE IRON SQ-ENDS W/BOARD HOLDERS■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ AXLES: ONE - 3.5K IDLER AXLE /CAMBERED W/ACCU-LUBE HUBS■ FLOOR: 1/8" STEEL DIAMOND TREAD PLATE SHEET METAL


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BSSTDWT 4808 615 # 4' X 8' $CALL FOR QUOTE
  BSSTDWT 6008 705 # 5' X 8' $CALL FOR QUOTE
  BSSTDWT 6010 770 # 5' X 10' $CALL FOR QUOTE
  BSSTDWT 7710 820 # 6'5" X 10' $CALL FOR QUOTE
  BSSTDWT 7712 1025 # 6'5" X 12' $CALL FOR QUOTE
  BSSTDWT 8310 915 # 6'11" X 10' $CALL FOR QUOTE
  BSSTDWT 8312 1080 # 6'11" X 12' $CALL FOR QUOTE

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2RM 7K 2" RAM CPLER ILO K5 2" ATWOOD COUPLER $CALL FOR QUOTE
  AX35BRK1 3.5 K BRAKE ONE AXLE WITH BREAK AWAY & 7 WAY RV PLUG $CALL FOR QUOTE
  SMSTM SPARE MOUNT ON PASSENGER OR DRIVER SIDE $CALL FOR QUOTE
  TR238PTR 2 3/8" PIPE TOP RAIL ILO 2"X2"X1/8" ANGLE TOP RAIL $CALL FOR QUOTE
  JK2KFUJT 2K FOLD UP JACK TOP WIND ILO 2K TOP WIND JACK $CALL FOR QUOTE
  LTRLBTR RAISE LIGHT BRACKETS TO TOP RAIL $CALL FOR QUOTE
