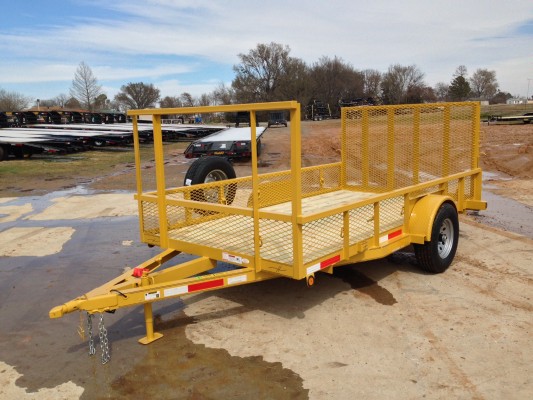

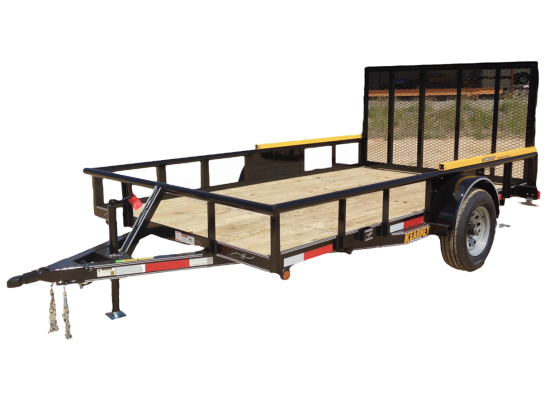

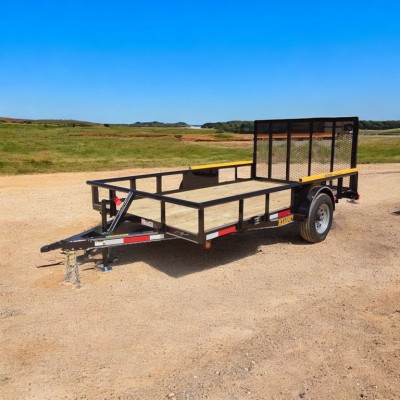

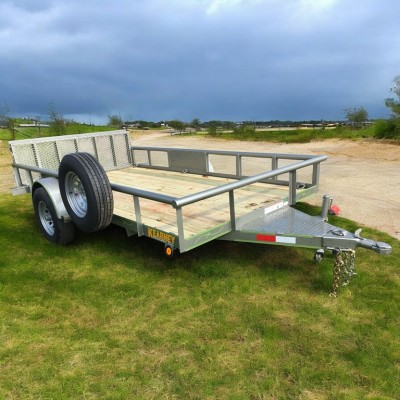

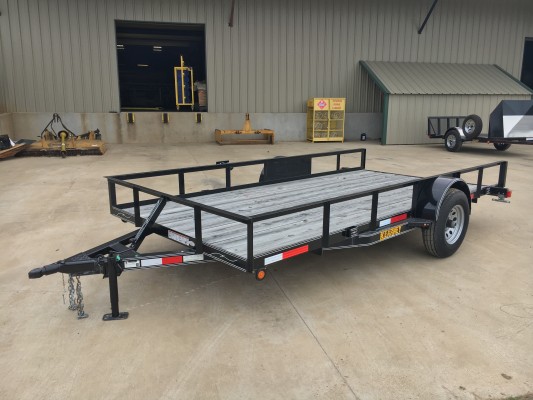

BUMPER SINGLE AXLE MEDIUM DUTY UTILITY 5200lb GVWR

Model #: BSMEDUT 5,200lb GVWR

Standard Features

■ COUPLER: 2" - ATWOOD W/COUPLER HOLE COVER PLATE■ TIRES: NEW ST225/75/R/15" RADIALS LOAD RANGE "D" 8-PLY■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ SAFETY CHAIN: 1/4" CHAIN W/SAFETY HOOKS■ WHEELS: 6 - HOLE POWDER COATED SILVER MODS■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS
■ JACK: 2K TOP WIND W/INTERCHANGEABLE PIN ON SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE■ TONGUE: 4" X 3" X 1/4" ANGLE IRON■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ PLUG: 4 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ FRAME: 4" X 3" X 1/4" ANGLE IRON■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ FENDERS: 9" X 32" ROLLED SMOOTH W/SMOOTH BACKING PLATES■ UPRIGHTS: 2" X 2" X 1/8" ANGLE IRON■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ SUSPENSION: 5-LEAVE EYE-TO-EYE SPRINGS SYSTEM■ TOP RAILS: 3" X 2" X 3/16" ANGLE IRON SQ-END W/BOARD HOLDERS■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ AXLES: ONE - 5.2K IDLER AXLE / CAMBERED W/ACCU-LUBE HUBS


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BSMEDUT 8310 915 # 6'11" X 10' $CALL FOR QUOTE
  BSMEDUT 8312 1080 # 6'11" X 12' $CALL FOR QUOTE
  BSMEDUT 8314 1240 # 6'11" X 14' $CALL FOR QUOTE

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2RM 7K RAM A-FRAME COUPLER ILO 5K ATWOOD A-FRAME COUPLER $CALL FOR QUOTE
  JK2KFUJT 2K FOLD UP JACK ILO 2K TOP WIND JACK $CALL FOR QUOTE
  JK7KDL 7K DROP LEG SIDE WIND JACK ILO 2K TOP WIND JACK $CALL FOR QUOTE
  TNWT WRAP AROUND TONGUE $CALL FOR QUOTE
  TR238PTR 2 3/8" PIPE TOP RAIL ILO 3"X2"X1/8" ANGLE TOP RAIL $CALL FOR QUOTE
  LTSQLTPROTBOXES PROTECTED LIGHT BOXES WITH 6" LED'S AND CLEARANCE LIGHTS $CALL FOR QUOTE
  TD-DRWO 1/2" WELD ON D-RINGS-EACH $CALL FOR QUOTE
  DT2 2' DOVE TAIL ON MEDIUM UTILITY $CALL FOR QUOTE
  TGWDTHW36"TG WIDTH OF TRAILER 3' TAILGATE $CALL FOR QUOTE
  RPSRA4 4' LONG 12" WIDE 2" CHANNEL SLIDE IN RAMPS $CALL FOR QUOTE
  TG83 83" WIDE TAILGATE $CALL FOR QUOTE
  SMSTM SPARE TIRE MOUNT WELDED ON DRIVER OR PASSENGER SIDE $CALL FOR QUOTE
  SP225-6-SM ST-225-75-D-8P / 6 HOLE SILVER MOD $CALL FOR QUOTE
