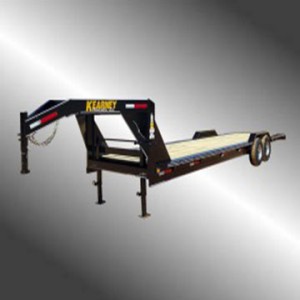

GOOSENECK TANDEM AXLE HEAVY DUTY EQUIPMENT HAULER 14,000lb GVWR

Model #: GTHDEQH 14,000lb GVWR

Standard Features

■ COUPLER: 2 5/16" - GN ADJ. W/SAFETY PIN & 2 - SET SCREWS■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON - ON 24" CENTERS
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ JACK: 0NE - 10K SPRING LOADED DROP LEG W/SAND FOOT■ SPARE MOUNT: SECURELY MOUNTED INSIDE NECK (MOUNT ONLY)■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ TIE DOWNS: 3" STAKE POCKETS W/RUB RAIL WELDED TO OUTSIDE■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ RAMPS: 5' HD CHANNEL IRON SLIDE IN RAMPS W/HOLDERS *2 - RAMP HANGING ROD LIPS ON BACK■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/SMOOTH BACKINGS■ NECK RISER: 30'& SMALLER 8"X11.5# CHANNEL IRON *32'& LARGER 10"X15.3# CHANNEL IRON■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM■ NECK: 30'& SMALLER 8"X11.5# CHANNEL IRON *32'& LARGER 10"X15.3# CHANNEL IRON■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS■ FRAME: 30'& SMALLER 8"X11.5# CHANNEL IRON W/5"X3"TRUSS *32'& LARGER 10"X15.3# CHANNEL IRON W/5"X3"TRUSS■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ BRAKES: ONE - ELECTRIC BRAKE W/BREAK AWAY & CHARGER


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  GTHDEQH 8316 # 6'11" X 16' $
  GTHDEQH 8318 # 6'11" X 18' $
  GTHDEQH 8320 # 6'11" X 20' $
  GTHDEQH 8320-8C # 6'11" X 20' $
  GTHDEQH 8324 # 6'11" X 24' $
  GTHDEQH 8326 # 6'11" X 26' $
  GTHDEQH 8328 # 6'11" X 28' $
  GTHDEQH 8330 # 6'11" X 30' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  SMSTMPS SPARE MOUNT ON PASS. SIDE OF TRAILER IN FRONT OF FENDER $
  AX70SCBRK-83 7K BRAKE ON SECOND AXLE $
  RPFUR5C-LB UPGRADE TO 5' STAND UP RAMPS $
  RPKF-CHFUR ADD KICKER FEET ON STAND UP RAMPS $
  SB-WP WINCH PLATE - 8in CHANNEL IRON X 16in LONG X 15in TALL $
  FR102FR-8224 82inX24' - 102inWIDE LOW PROFILE FRAME EXTENSIONS $
  FD8DOF-TDPTD 8in CHANNEL DRIVE OVER FENDERS W/CTR BRACE $
  DTHDEQH-2 2' DOVE TAIL FLOOR ON HEAVY DU TY EQUIPMENT HAULERS $
  DTHDEQH-4 4' DOVE TAIL FLOOR ON HEAVY DU TY EQUIPMENT HAULERS $
  JK10KDL-2 2-12K DROP LEG JACK ILO 1-12K DROP LEG JACK $
  TWTU235R14P8SM UPGRADE 4 TIRES TO ST235-85-R-16-14P $
  SP235-R-14P-8-S SPARE ST 235/85/R/16" 14-Ply $
  SP235-R-6-SM SPARE ST 235/80/R/16" 10-Ply $

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now
