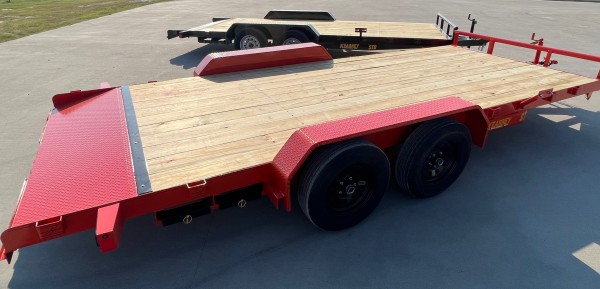

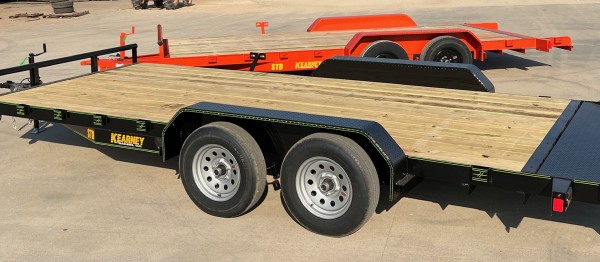

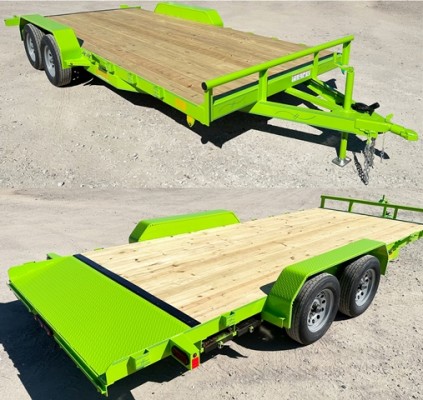

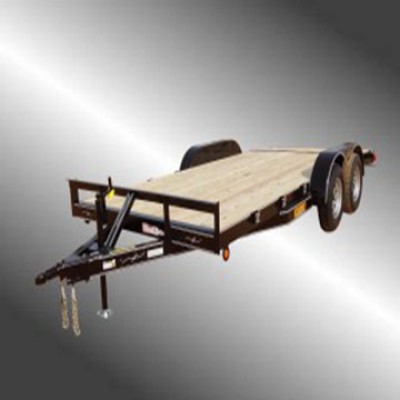

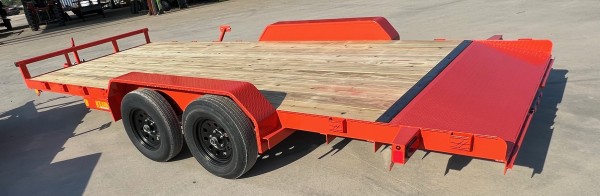

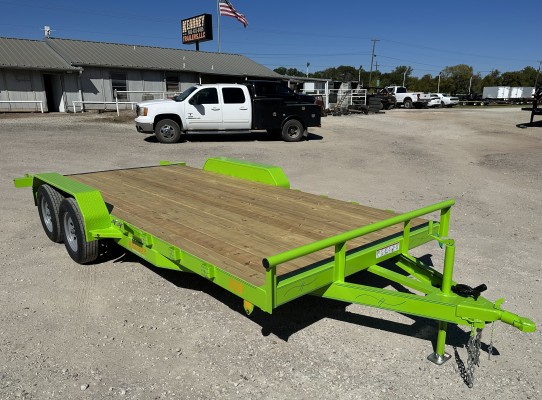

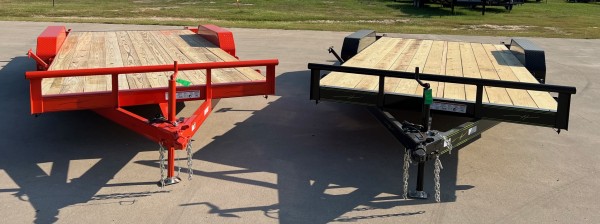

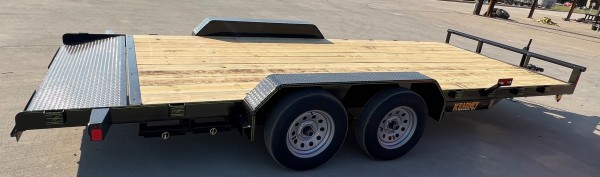

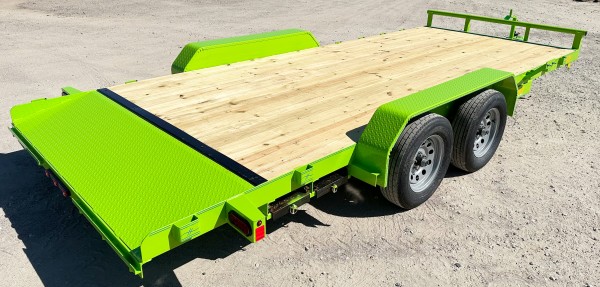

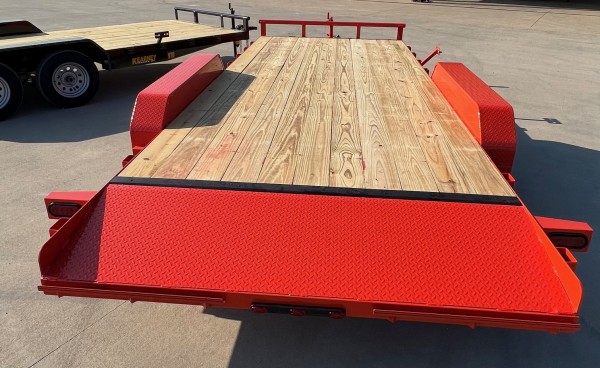

BUMPER TANDEM AXLE STANDARD DUTY WOOD FLOOR CAR HAULER 7,000lb GVWR

Model #: BTSTDWFCH 7,000lb GVWR

Standard Features

■ Coupler: 2" Atwood Coupler w/ Hole Cover Plate■ Axles: Two - 3.5K Idler Axle (Camber & Accu-Lube)■ Crossmembers: 3" x 2" x 3/16" Angle Iron
■ Safety Chains: 1/4" Chain w/ Safety Latching Hooks■ Tires: New ST 205/75/R/15" Radial (L-Range C) 6-Ply■ Bump Rail On Front: 3" x 2" x 3/16" Angle Iron
■ Jack: 2K Top Wind w/ Pin On Sand Foot■ Wheels: New 5H/5"GM Powder Coated Silver Mod■ Floor: Treated 2" x 8" Pine Lumber w/ Double Screws
■ Jack Is Set Back For Tailgate Opening Clearance■ Tie Downs: Four - One In Each Corner■ Exterior Finish: Durable High Gloss Acrylic Finish
■ Plug: 4 - Way Molded Harness (Grounded To Frame)■ Ramps: 5' Slide In Angle Iron Ramps■ Stickers: All Warnings & KEARNEY Reflective Logos
■ Lights: "LED" Running, Stop, Turn, and Clearance■ Tongue: 16' & Smaller 5" x 3" x 1/4" Angle Iron■ Trim: Standard w/ White Pinstriping
■ Fenders: 9" x 72" Straight Fender w/ Back■ 18' & Larger 5" x 3" x 1/4" Angle Iron Wrap Around Tongue■ Warranty: Limited Two Year Kearney Warranty
■ Suspension: Equalizer / 4-Leave Eye-to-Eye Springs■ Frame: 5" x 3" x 1/4" Angle Iron


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTSTDWFCH 8312 1250 # 6'11" x 12' $
  BTSTDWFCH 8314 1350 # 6'11" x 14' $
  BTSTDWFCH 8316 1450 # 6'11" x 16' $
  BTSTDWFCH 8318 1950 # 6'11" x 18' $
  BTSTDWFCH 8320 2150 # 6'11" x 20' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2RM 7K 2" RAM A-FRAME COUPLER ILO 5K 2" ATWOOD A-FRAME COUPLER $
  JK2KFUJT 2K FOLD UP JACK ILO 2K TOP WIND $
  JK7KDL 7K DROP LEG SIDE WIND JACK ILO 2K TOP WIND JACK $
  JK3.5KELECJT 3.5K ELECTRIC JACK ILO 2K TOP WIND JACK $
  SB-WP WINCH PLATE - 8" CHANNEL IRON X 16" LONG X 15" TALL $
  ELEC4.4KWINCHPKG 4.4K BULLDOG ELECTRIC WINCH WITH BATTERY, BOX AND WINCH PLATE $
  TNWT53 5"X3"X1/4" WRAP AROUND TONGUE FOR 16' AND SMALLER $
  TW15AWUG 15" ALUMINUM WHEEL UPGRADE $
  FLRFL-12-20 RAISE FLOOR FLUSH TO TOP OF FRAME $
  DT2 2' DOVE TAIL FLOOR ON STANDARD DUTY $
  DT4 4' DOVE TAIL FLOOR ON STANDARD DUTY $
  AX35BRK1 3.5K BRAKE ON ONE AXLE WITH BREAK AWAY& 7 WAY RV PLUG $
  AX35BRK2 3.5K BRAKE ON TWO AXLES WITH BRAKE AWAY & 7 WAY RV PLUG $
  SMSTMCCHPS 3" CHANNEL SPARE TIRE MOUNT ON PASSENGER SIDE IN FRONT OF FENDER $
