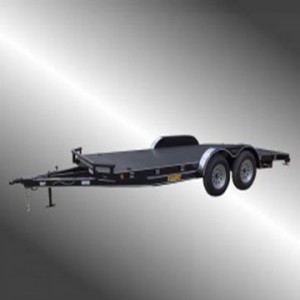

BUMPER TANDEM AXLE STANDARD DUTY STEEL FLOOR CAR HAULER 7,000lb GVWR

Model #: BTSTDSFCH 7,000lb GVWR

Standard Features

■ Coupler: 2" - 7K Ram Coupler w/ Hole Cover Plate■ Tires: New ST 205/75/R/15" Radial (L-Range C) 6-Ply■ Floor: 1/8" Diamond Plate Steel Floor - Flush
■ Safety Chains: 1/4" Chain w/ Safety Latching Hooks■ Wheels: New 5H/5"GM Powder Coated Silver Mod■ Dove Tail: 4' Dove Tail
■ Jack: 2K Fold Up w/ Sand Foot Set In Center■ Tie Downs: Stake Pockets (16'-10) (18'-12) (20'-14)■ Four Weld On D - Rings On Top Of The Floor
■ Plug: 7 - Way Molded Harness (Grounded To Frame)■ Ramps: 5' 2" Channel Iron Slide In Ramps ■ Trim: Chrome Gravel Guard On Front Of Fenders
■ Lights: "LED" Running, Stop, Turn, and Clearance■ Tongue: 5" x 3" x 1/4" Angle Wrap Around■ Exterior Finish: High Gloss Acrylic Polyurethane
■ Fenders: 9" x 72" Teardrop smooth Fender w/ Back■ Frame: 5" x 6.7# Channel Iron■ Stickers: All Warnings & KEARNEY Reflective Logos
■ Suspension: Equalizer / 4-Leave Eye-to-Eye Springs■ Frame: Front Corners 45 Degree Back■ Trim: Standard w/ White PINSTRIPES
■ Axles: Two - 3.5K Axles (Camber & Accu-Lube)■ Crossmembers: 3" x 2" x 3/16" Angle Iron■ Warranty: Limited Two Year Kearney Warranty
■ Brake: One - Electric Brake w/ Break Away Kit■ Bump Rail On Front: 2-3/8" Pipe 8" Tall


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTSTDSFCH 8312 1450 # 6'11" x 12' $
  BTSTDSFCH 8314 1550 # 6'11" x 14' $
  BTSTDSFCH 8316 1650 # 6'11" x 16' $
  BTSTDSFCH 8318 2050 # 6'11" x 18' $
  BTSTDSFCH 8320 2450 # 6'11" x 20' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  JK2KTW-FU 2K TOP WIND JACK ILO 2K FOLD UP JACK $
  JK3.5KELECJT 3.5K ELECTRIC JACK ILO 2K FOLD UP JACK $
  JK7KDL-FU 7K DROP LEG JACK ILO 2K FOLD UP JACK $
  RS83RK 83" WIDE 44" TALL ROCK SHIELD WITH CHROME GRAVEL GAURD $
  SBBPTBXOT V-STYLE TOOL BOX MOUNTED ON TONGUE PAINTED TO MATCH $
  ELEC4.4KWINCHPK 4.4 BULLDOG ELECTRIC WINCH PACKAGE WITH BATTERY AND BOX $
  ELEC738KWINCHPKG 7.8K BULLDOG ELECTRIC WINCH WITH BATTERY, BOX AND WINCH PLATE $
  TD-DRWO EXTRA 1/2" WELD ON D-RINGS (EACH) $
  FDDPTDF-TTD DIAMOND PLATE TEAR DROP FENDERS ILO TANDEM TEAR DROP SMOOTH $
  AX35BRK2-83 83" - 3.5K BRAKE ON SECOND AXLE WITH BRAKE AWAY $
  TW15AWUG 15" ALUMINUM WHEEL UPGRADE $
  SMSTMCHPS CHANNEL SPARE MOUNT PASSENGER SIDE IN FRONT OF FENDER $
