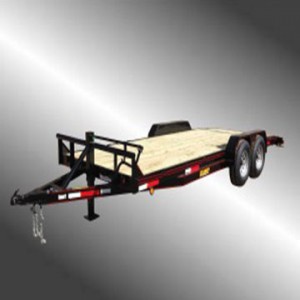

BUMPER TANDEM AXLE HEAVY DUTY EQUIPMENT HAULER 14,000lb GVWR

Model #: BTHDEQH 14,000lb GVWR

Standard Features

■ COUPLER: 2-5/16" 14K RAM W/COUPLER HOLE COVER PLATE■ BRAKES: ONE - ELECTRIC BRAKE W/BREAK AWAY & CHARGER■ BUMP RAILS: 3" PIPE BUMP RAIL / 20" TALL
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ JACK: 10K SPRING LOADED DROP LEG W/SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ TIE DOWNS: 3" STAKE POCKETS W/RUB RAIL WELDED TO OUTSIDE■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ RAMPS: 5' HD CHANNEL IRON SLIDE IN RAMPS W/HOLDERS *2 - RAMP HANGING ROD LIPS ON BACK■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/SMOOTH BACKINGS■ TONGUE: 5' X 3" X 1/4" ANGLE IRON WRAP AROUND *22'& LARGER 6" X 8.2" CHANNEL IRON WRAP AROUND■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM■ FRAME: 20'& SMALLER 6" X 8.2# CHANNEL IRON *22'& LARGER 8" X 11.5# CHANNEL IRON■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / RAISED FLOORING■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTHDEQH 8316 2250 # 6'11" x 16' $
  BTHDEQH 8318 2550 # 6'11" x 18' $
  BTHDEQH 8320 2850 # 6'11" x 20' $
  BTHDEQH 8320-8C 2950 # 6'11" x 20' $
  BTHDEQH 8324 3450 # 6'11" x 24' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  SMSTMPS SPARE MOUNT ON PASS. SIDE OF TRAILER IN FRONT OF FENDER $
  AX70SCBRK-83 7K BRAKE ON SECOND AXLE $
  RPFUR5C-LB UPGRADE TO 5' STAND UP RAMPS $
  RPKF-CHFUR ADD KICKER FEET ON STAND UP RAMPS $
  SB-WP WINCH PLATE - 8in CHANNEL IRON X 16in LONG X 15in TALL $
  FR102FR-8224 2inX24' - 102inWIDE LOW PROFILE FRAME EXTENSIONS $
  FD8DOF-TDPTD 8in CHANNEL DRIVE OVER FENDERS W/CTR BRACE $
  DTHDEQH-2 2' DOVE TAIL FLOOR ON HEAVY DU TY EQUIPMENT HAULERS $
  DTHDEQH-4 4' DOVE TAIL FLOOR ON HEAVY DU TY EQUIPMENT HAULERS $
  JK10KDL-2 2-12K DROP LEG JACK ILO 1-12K DROP LEG JACK $
  TWTU235R14P8SM UPGRADE 4 TIRES TO ST235-85-R-16-14P $
  SP235-R-14P-8-S SPARE ST 235/85/R/16" 14-Ply $
  SP235-R-6-SM SPARE ST 235/80/R/16" 10-Ply $
