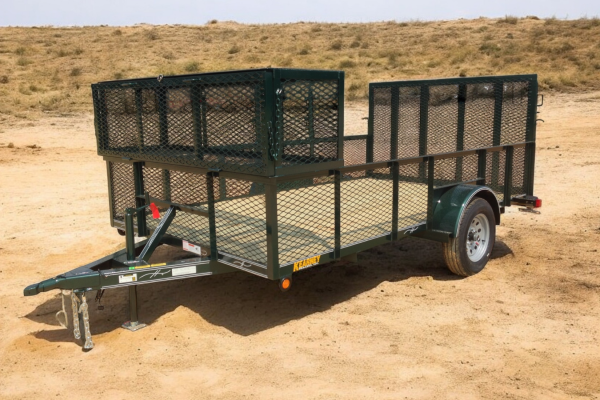

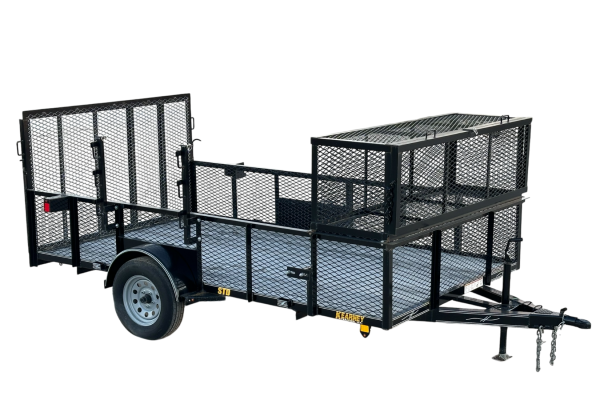

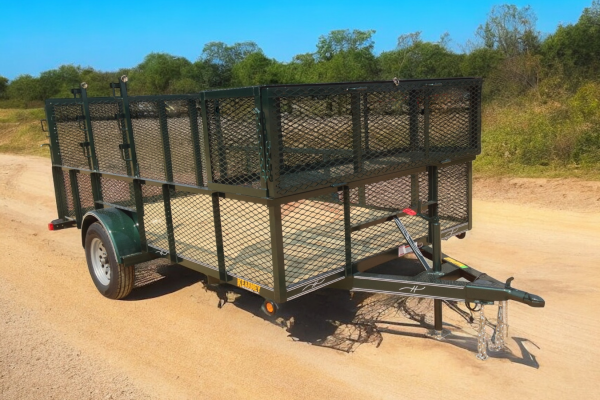

BUMPER SINGLE AXLE STANDARD DUTY LANDSCAPE 3,500lb GVWR

Model #: BSSTDLS 3,500lb GVWR

Standard Features

■ COUPLER: 2" - 5K ATWOOD W/COUPLER HOLE COVER PLATE■ WHEELS: 5 - HOLE POWDER COATED SILVER MODS / GM-5"-BP■ TOP RAILS: 2" X 2" X 1/8" ANGLE IRON
■ SAFETY CHAIN: 1/4" CHAIN W/SAFETY HOOKS■ TAILGATE: 4' TALL EXPANDED MTL, W/SPRING LOADED LATCH PINS■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ JACK: 2K TOP WIND W/INTERCHANGEABLE PIN ON SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE■ TIE DOWNS: FOUR 3" STAKE POCKET TIE DOWNS - ONE EACH CORNER■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS
■ PLUG: 4 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ STORAGE/RACK: 2'X 2'X WIDTH OF TRAILER LOCKABLE LANDSCAPE BOX *1 - SET OF LOCKABLE WEEDEATER RACKS (HOLDS - 3)■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ TONGUE: 5'X 12'& SMALLER - 3" X 2" X 3/16" ANGLE IRON *5'X 14'& ALL 77"WIDES - 4" X 3" X 1/4" ANGLE IRON■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ FENDERS: 9" X 32" ROLLED SMOOTH W/SMOOTH BACKING PLATES■ SIDES: 48" TALL, EXPANDED METAL, W/SIDE BRACING■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ SUSPENSION: 4-LEAVE EYE-TO-EYE SPRINGS SYSTEM■ FRAME: 3" X 2" X 3/16" ANGLE IRON■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ AXLES: ONE - 3.5K IDLER AXLE /CAMBERED W/ACCU-LUBE HUBS■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ TIRES: NEW ST205/75/R/15" RADIALS LOAD RANGE "C" 6-PLY■ UPRIGHTS: 2" X 2" X 1/8" ANGLE IRON,BOTH BACK 3"X 2"X 3/16"


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BSSTDLS 7710 935 # 6'5" X 10' $
  BSSTDLS 7712 960 # 6'5" X 12' $
  BSSTDLS 7714 985 # 6'5" X 14' $
  BSSTDLS 8310 965 # 6'11" X 10' $
  BSSTDLS 8312 990 # 6'11" X 12' $
  BSSTDLS 8314 1015 # 6'11" X 14' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2RM 7K 2" RAM A-FRAME COUPLER ILO 5K 2" ATWOOD A- FRAME COUPLER $
  JK1.2KFUJWH-FU 1.2K FOLD UP JACK WITH WHEEL ILO 2K TOP WIND $
  JK2KTW-FU 2K TOP WIND JACK ILO 2K TOP WIND JACK $
  JK3.5KELECJT 3.5K ELECTRIC JACK ILO 2K TOP WIND JACK $
  SBBPTBXOT V-STYLE TOOL BOX MOUNTED ON TONGUE PAINT TO MATCH $
  TNWT43 4"X3"X1/4" ANGLE IRON WRAP AROUND TONGUE $
  TR238PTR 2 3/8" PIPE TOP RAIL ILO 2"X2" ANGLE IRON TOP RAIL $
  TR32ATR 3"X2X3/16" ANGLE IRON TOP RAIL ILO 2"X2"X1/8" ANGLE TOP RAIL $
  SB-WCR WATER COOLER RACK $
  SB-WR EXTRA SET OF WEED EATER RACKS LOCKABLE HOLDS 3 $
  TD-DRWO 1/2" WELD ON D-RINGS (EACH) $
  SMSTM SPARE TIRE MOUNT WELDED ON DRIVER OR PASSENGER SIDE $
  SP225-5-SM SPARE ST-225-75-R-15-8PLY /5 HOLE SILVER MODS $
