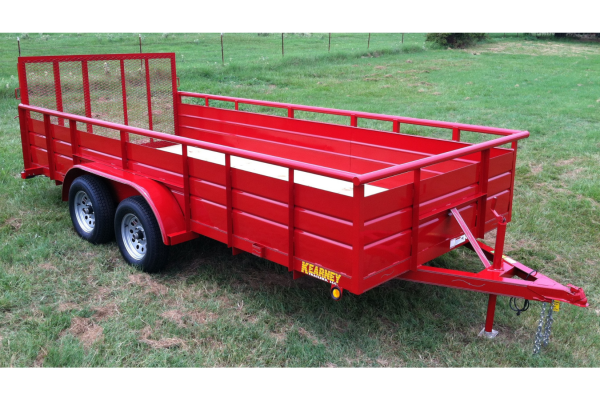

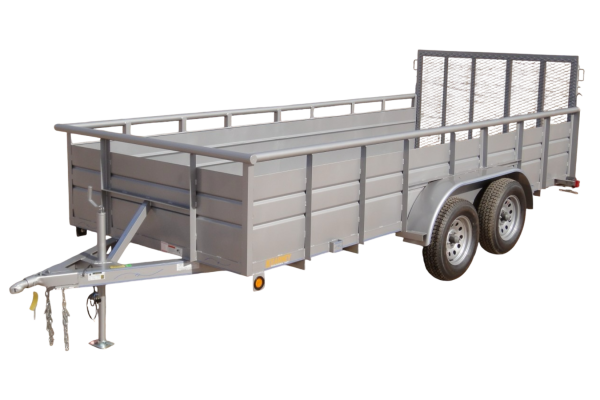

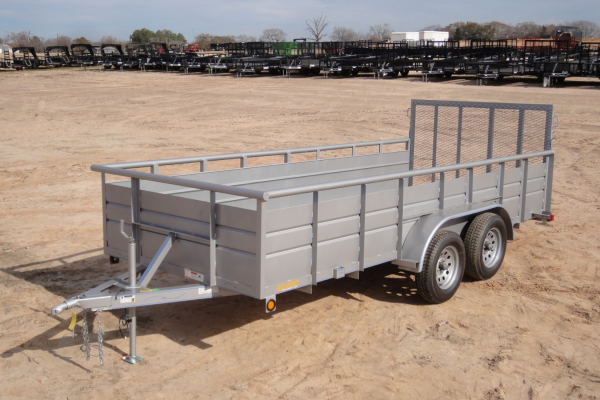

BUMPER TANDEM AXLE STANDARD DUTY 22" SOLID SIDE / PIPE TOP CUSTOM UTILITY 7,000lb GVWR

Model #: BTSTDPTCUT 7,000lb GVWR

Standard Features

■ COUPLER: 2" - ATWOOD W/COUPLER HOLE COVER PLATE■ WHEELS: 5 - HOLE POWDER COATED SILVER MODS / GM-5"-BP■ TOP RAILS: 2-3/8" PIPE RAILING
■ SAFETY CHAIN: 1/4" CHAIN W/SAFETY HOOKS■ TAILGATE: 4' TALL EXPANDED MTL, W/SPRING LOADED LATCH PINS■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ JACK: 2K TOP WIND W/INTERCHANGEABLE PIN ON SAND FOOT * JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE■ TIE DOWNS: FOUR 3" STAKE POCKET TIE DOWNS - ONE EACH CORNER■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS
■ PLUG: 4 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ TONGUE: 16'& SMALLER - 4" X 3" X 1/4" ANGLE IRON *18'& LARGER - 5" X 3" X 1/4" ANGLE IRON■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ SIDES: 22" TALL, SOLID PANELING *4" GAP BETWEEN SIDES AND TOP RAIL - FOR EASY TIE■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/SMOOTH BACKINGS■ FRAME: 3" X 2" X 3/16" ANGLE IRON■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ SUSPENSION: EQUALIZER W/4-LEAVE EYE-TO-EYE SPRINGS SYSTEM■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ AXLES: TWO - 3.5K IDLER AXLE /CAMBERED W/ACCU-LUBE HUBS■ UPRIGHTS: 2" X 2" X 1/8" ANGLE IRON,BOTH BACK 3"X 2"X 3/16"■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ TIRES: NEW ST205/75/R/15" RADIALS LOAD RANGE "C" 6-PLY


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTSTDPTCUT 6014 1375 # 5' X 14' $
  BTSTDPTCUT 7710 1170 # 6'5" X 10' $
  BTSTDPTCUT 7712 1220 # 6'5" X 12' $
  BTSTDPTCUT 7714 1425 # 6'5" X 14' $
  BTSTDPTCUT 7716 1630 # 6'5" X 16' $
  BTSTDPTCUT 7718 1825 # 6'5" X 18' $
  BTSTDPTCUT 7720 1875 # 6'5" X 20' $
  BTSTDPTCUT 8310 1210 # 6'11" X 10' $
  BTSTDPTCUT 8312 1260 # 6'11" X 12' $
  BTSTDPTCUT 8314 1470 # 6'11" X 14' $
  BTSTDPTCUT 8316 1680 # 6'11" X 16' $
  BTSTDPTCUT 8318 1890 # 6'11" X 18' $
  BTSTDPTCUT 8320 1955 # 6'11" X 20' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2RM 2" 7K RAM A-FRAME COUPLER ILO 5K ATWOOD A-FRAME COUPLER $
  JK2KFUJT 2K FOLD UP JACK ILO 2K TOP WIND JACK $
  JK7KDL 7K DROP LEG SIDE WIND JACK ILO 2K TOP WIND JACK $
  SBBPTBXOT V-STYLE TOOL BOX MOUNTED ON TONGUE PAINT TO MATCH $
  AX35BRK1 3.5K BRAKE ONE AXLE W BRAKE AWAY & 7 WAY RV PLUG $
  SMSTM SPARE MOUNT WELDED ON DRIVER OR PASSENGER SIDE $
  SP225-5-SM SPARE ST-225-75-R- $
