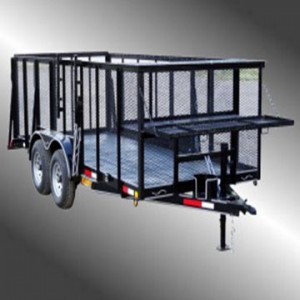

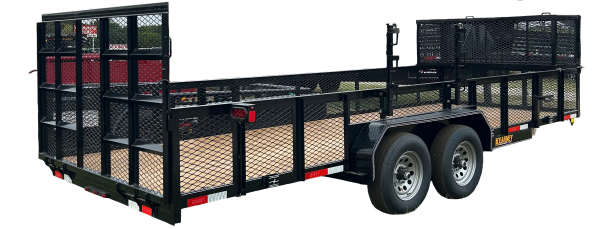

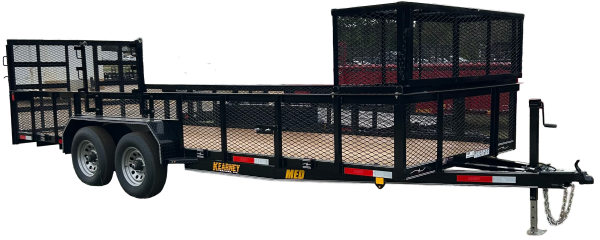

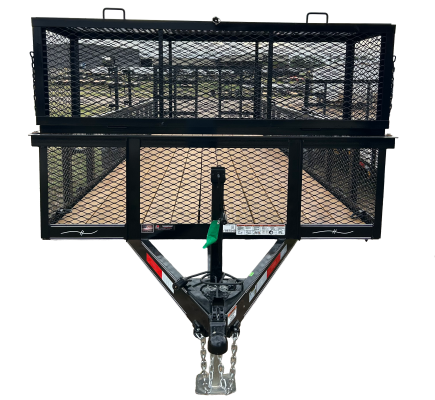

BUMPER TANDEM AXLE MEDIUM DUTY LANDSCAPE 10,400lb GVWR

Model #: BTMED24LS 10,400lb GVWR

Standard Features

■ COUPLER: 2-5/16" 12.5K RAM W/ COUPLER HOLE COVER PLATE■ TIRES: NEW ST225/75/R/15" RADIALS LOAD RANGE "D" 8-PLY■ UPRIGHTS: 2" X 2" X 3/16" ANGLE IRON, BOTH BACK 3" X 2" X 3/16"
■ SAFETY CHAIN: 1/4" CHAIN W/ SAFETY HOOKS■ WHEELS: 6 - HOLE POWDER COATED SILVER MODS■ TOP RAILS: 3" X 2" X 3/16" ANGLE IRON
■ JACK: 7K DROP LEG W/ SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE

■ TAILGATE: 4' TALL EXPANDED MTL, W/SPRING LOADED LATCH PINS * SPRING ASSIST ON TAILGATE, W/18" ROD HINGE ASSY.

■ FLOOR: PRESSURE TREATED/ 2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ TIE DOWNS: FOUR 3" STAKE POCKET TIE DOWNS - ONE EACH CORNER■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ STORAGE/RACK: 2'X 2'XBOLT ON TOP RAIL LOCKABLE LANDSCAPE BOX *1 - SET OF LOCKABLE WEEDEATER RACKS (HOLDS - 3)■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-* INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS■ TONGUE: 5" CHANNEL IRON WRAP AROUND■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS * ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ SUSPENSION: EQUALIZER W/5-LEAVE EYE-TO-EYE SPRINGS SYSTEM■ SIDES: 26" TALL, EXPANDED METAL■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH
■ AXLES: TWO - 5.2K AXLES / CAMBERED W/ ACCU-LUBE HUBS

■ FRAME: 20'& SMALLER - 4" X 3" X 1/4" ANGLE IRON * 24' - 5" X 3" X 1/4" ANGLE IRON

■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ BRAKES: ONE - ELECTRIC BRAKE W/ BREAK AWAY & CHARGER■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTMEDLS 8316 1880 # 6'11" X 16' $
  BTMEDLS 8318 2115 # 6'11" X 18' $
  BTMEDLS 8320 2350 # 6'11" X 20' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2516RMAJ-BB 14K 2 5/16in ADJ RAM Coupler ILO 1 2.5K 2 5/16in Ram Coupler $
  JK10KDL-7K 10K SPRING LOADED DROP LEG JACK ILO 7K DROP LEG JACK $
  SBBPTBXOT V-STYLE TOOL BOX MOUNTED ON TONGUE PAINT TO MATCH $
  TR238PTR 2"X3/8" PIPE TOP RAIL ILO 3"X2"X3/16" ANGLE TOP RAIL $
  SB-WCR WATER COOLER RACK $
  TD-DRWO 1/2" WELD ON D-RINGS-EACH $
  SB-WR EXTRA SET OF WEED EATER RACKS LOCKABLE HOLDS 3 $
  AX52SCBRK 5.2K BRAKE ON SECOND AXLE $
  SMSTM SPARE TIRE MOUNT WELDED ON DRIVER OR PASSENGER SIDE $
  TWTU235R6SM ST235-80-R-16-10P-6H-SM ILO ST225-75-R-15-8P-6H-SM $
  SP225-6-SM SPARE ST-225-75-R-15-8P/6 HOLE SILVER MOD $
  SP235-6-SM SPARE ST 225-75-R15-8 PLY / 6 HOLE SILVER MOD $
  TNWT WRAP AROUND TONGUE $
