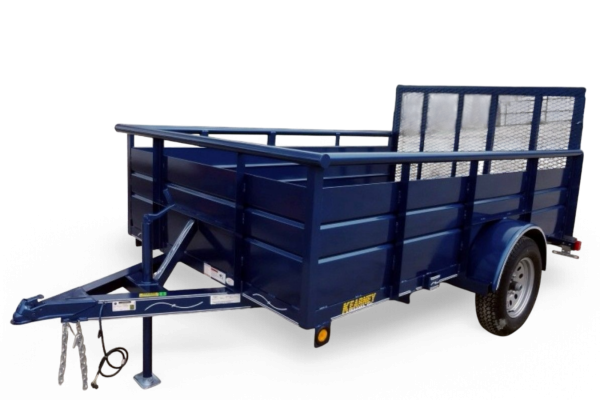

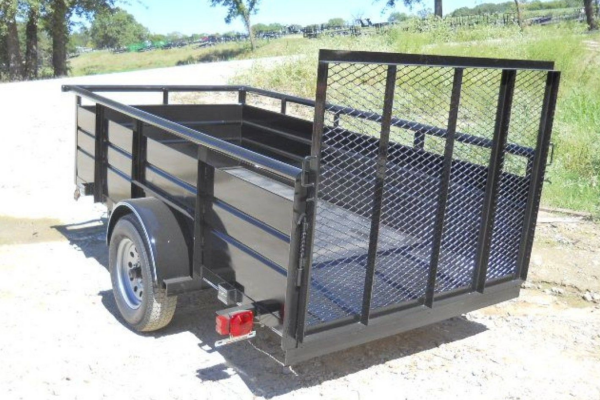

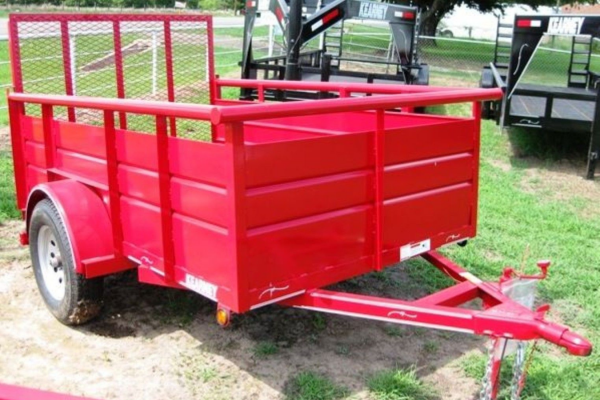

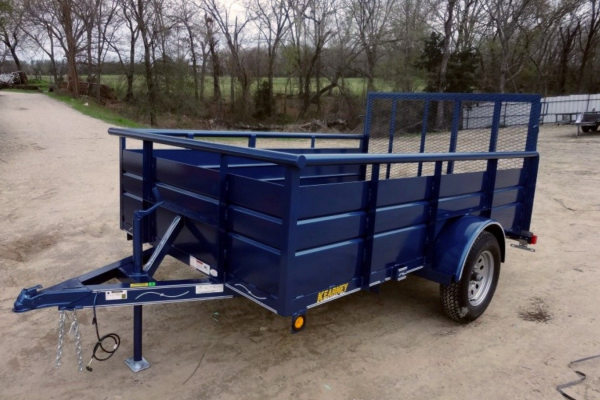

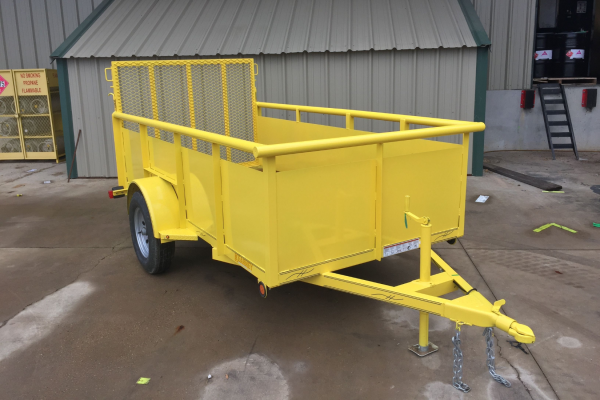

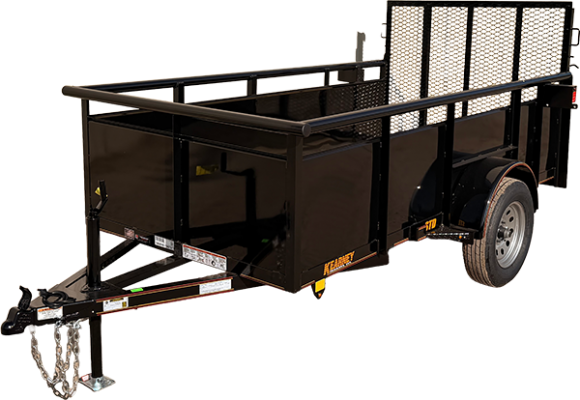

BUMPER SINGLE AXLE STANDARD DUTY 22" SOLID SIDE / PIPE TOP CUSTOM UTILITY 3,500lb GVWR

Model #: BSSTDPTCUT 3,500lb GVWR

Standard Features

■ COUPLER: 2" - ATWOOD W/COUPLER HOLE COVER PLATE■ TIRES: NEW ST225/75/R/15" RADIALS LOAD RANGE "D" 8-PLY■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ SAFETY CHAIN: 1/4" CHAIN W/SAFETY HOOKS■ WHEELS: 6 - HOLE POWDER COATED SILVER MODS■ STICKERS: WARNING & SAFETY & REFLECTIVE KEARNEY LOGOS
■ JACK: 2K TOP WIND W/INTERCHANGEABLE PIN ON SAND FOOT *JACK IS SET BACK FOR TAILGATE OPENING CLEARANCE■ TONGUE: 4" X 3" X 1/4" ANGLE IRON■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ PLUG: 4 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ FRAME: 4" X 3" X 1/4" ANGLE IRON■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE■ CROSSMEMBERS: 3" X 2" X 3/16" ANGLE IRON■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ FENDERS: 9" X 32" ROLLED SMOOTH W/SMOOTH BACKING PLATES■ UPRIGHTS: 2" X 2" X 1/8" ANGLE IRON■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ SUSPENSION: 5-LEAVE EYE-TO-EYE SPRINGS SYSTEM■ TOP RAILS: 3" X 2" X 3/16" ANGLE IRON SQ-END W/BOARD HOLDERS■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ AXLES: ONE - 5.2K IDLER AXLE / CAMBERED W/ACCU-LUBE HUBS


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BSSTDPTCUT 6008 890 # 5' x 8' $
  BSSTDPTCUT 6010 930 # 5' x 10' $
  BSSTDPTCUT 6012 1115 # 5' x 12' $
  BSSTDPTCUT 7710 950 # 6'5" x 10' $
  BSSTDPTCUT 7712 1140 # 6'5" x 12' $
  BSSTDPTCUT 8310 990 # 6'11" x 10' $
  BSSTDPTCUT 8312 1180 # 6'11" x 12' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP2RM 2" 7K RAM A-FRAME COUPLER ILO 5K ATWOOD A-FRAME COUPLER $
  JK2KFUJT 2K FOLD UP JACK ILO 2K TOP WIND JACK $
  JK7KDL 7K DROP LEG SIDE WIND JACK ILO 2K TOP WIND JACK $
  SBBPTBXOT V-STYLE TOOL BOX MOUNTED ON TONGUE PAINT TO MATCH $
  SMSTM SPARE MOUNT WELDED ON DRIVER OR PASSENGER SIDE $
  SP225-5-SM SPARE ST-225-75-R-15-8PLY /5 HOLE SILVER MODS $
