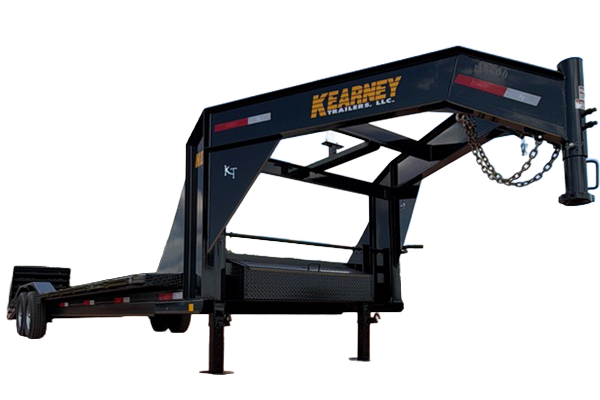

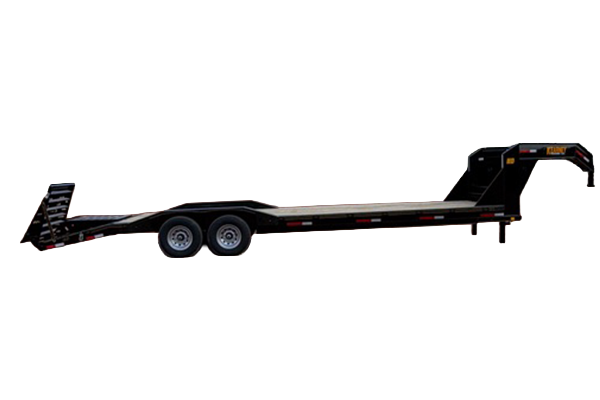

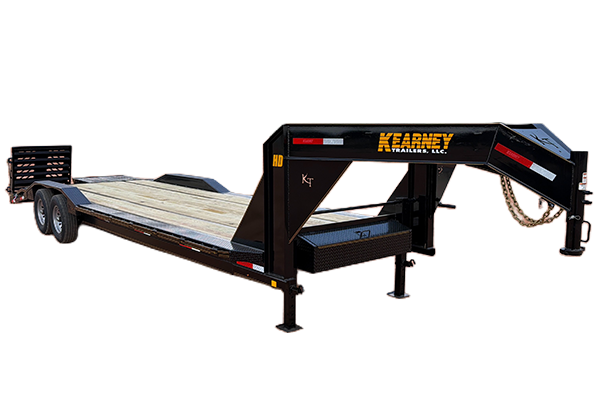

GOOSENECK TANDEM AXLE HEAVY DUTY EQUIPMENT HAULER W/4' DOVETAIL & MINI-K RAMPS 14,000LB GVWR

Model #: GTHDEQH-MK 14,000 GVWR

Standard Features

■ COUPLER: 2 5/16" - GN ADJ. W/ SAFETY PIN & 2 - SET SCREWS	■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY	■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON - ON 18" CENTERS - RAISED FLOOR - 3" CHANNEL TIE RUNNERS FRONT TO BACK IN FLOOR
■ SAFETY CHAIN: 3/8" CHAIN W/ SAFETY HOOKS	■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS	■ FLOOR: #1 PRESSURE TREATED/ 2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ JACK: TWO - 12K SPRING LOADED DROP LEG W/ SAND FOOT	■ SPARE MOUNT: SECURELY MOUNTED INSIDE NECK (MOUNT ONLY)	■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME	■ TIE DOWNS: 3" STAKE POCKETS W/ RUB RAIL WELDED TO OUTSIDE	■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS *ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH

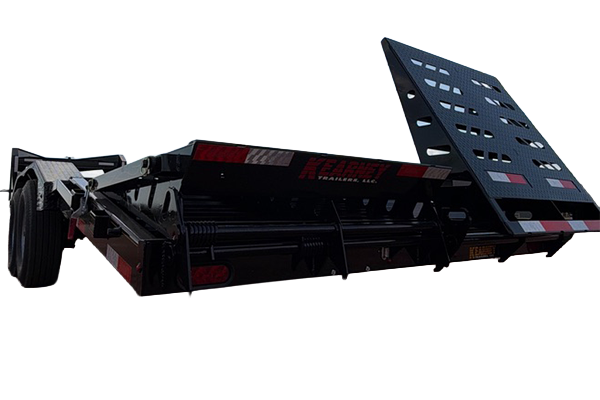

■ LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE	■ RAMPS: *NEW* HD 4' L X 36" W (MINI-K) SPRING LOADED	■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH
■ FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/ SMOOTH BACKINGS	■ NECK RISER: 12" X 14# I-BEAM	■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ SUSPENSION: EQUALIZER W/ 5 LEAF SLIPPER SPRINGS SYSTEM	■ NECK: 12" X 14# I-BEAM	■ WARRANTY: A LIMITED 4 YEAR STRUCTURAL & 2 YEAR MATERIALS GUARANTEE
■ AXLES: TWO - 7K AXLES / CAMBERED W/ ACCU-LUBE HUBS	■ FRAME: 8" X 11.5# CHANNEL IRON
■ BRAKES: TWO - ELECTRIC BRAKES W/ BREAK AWAY & CHARGER
