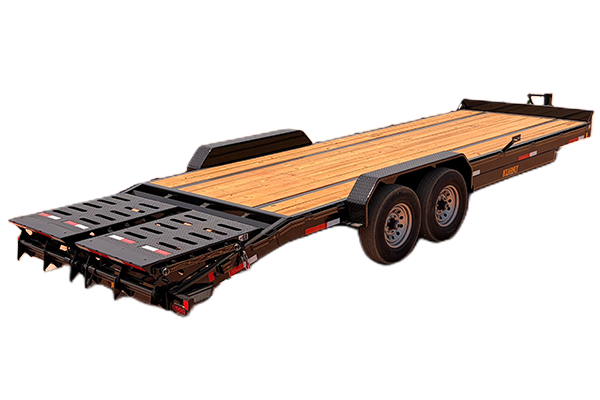

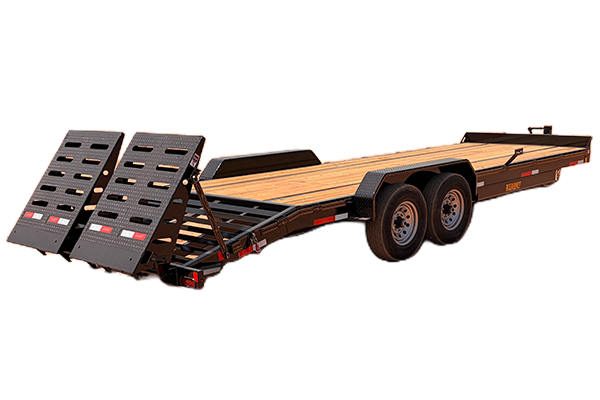

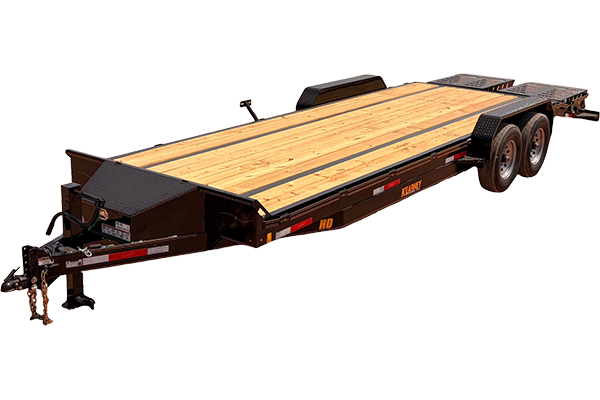

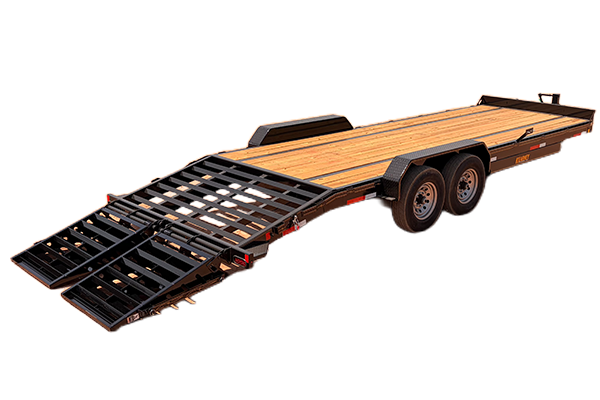

BUMPER TANDEM AXLE HEAVY DUTY EQUIPMENT HAULER W/4' DOVETAIL & MINI-K RAMPS

Model #: BTHDEQH-MK 14000LBS GVWR

Standard Features

COUPLER: 2 5/16" DEMCO ADJUSTABLE EX LATCH COUPLER

SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS

JACK: 12K BOLT ON SPRING LOADED DROP LEG W/SAND FOOT

PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME

LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE

FENDERS: 9" X 72" 14GA STRAIGHT TREAD PLATE W/SMOOTH BACKINGS

SUSPENSION: EQUALIZER W/5 LEAF SLIPPER SPRINGS SYSTEM

AXLES: TWO - 7K DEXTER BRAKE AXLES / CAMBERED W/ACCU-LUBE HUBS

TIRES: ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY

TONGUE: 6" X 8.2" CHANNEL IRON WRAP AROUND

FRONT BUMP RAIL: 7" TALL SOLID FRONT BUMP STOP RAIL

FRAME: 8" X 11.5# CHANNEL IRON

CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / 18" CENTERS - RAISED FLOOR

3" CHANNEL TIE RUNNERS FROM FRONT TO BACK IN FLOOR

BACK BUMPER: 6" X 2" X 3/16"T RECTANGULAR TUBING

DOVETAIL: 4' HEAVY DUTY SELF CLEANING DOVETAIL

RAMPS: *NEW* HD 4' LONG X 36" WIDE (MINI-K) SPRING LOADED
