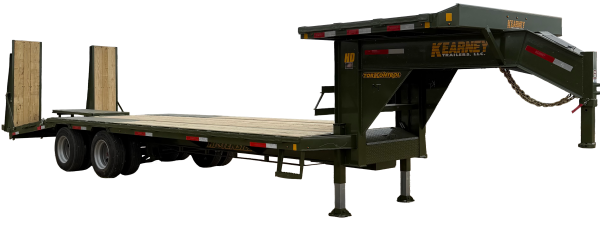

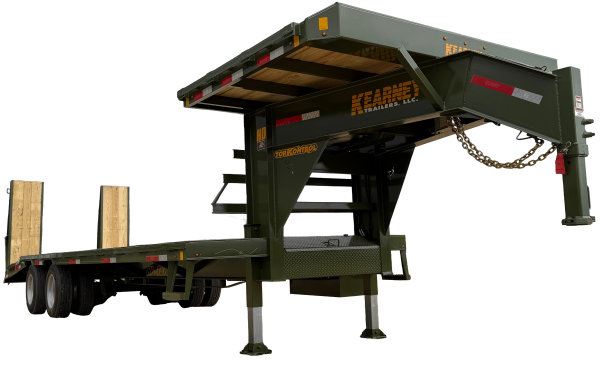

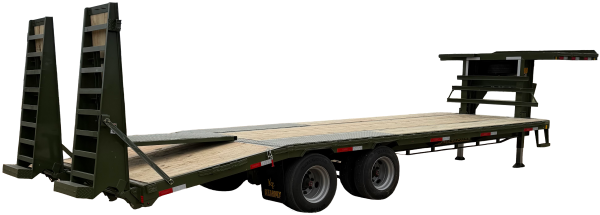

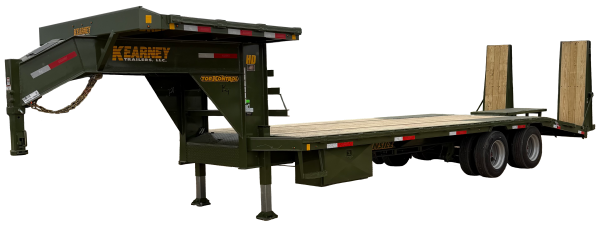

GOOSENECK TANDEM DUAL WHEEL"DELUXE LOW-PROFILE" W/5' DOVETAIL - HEAVY DUTY GVWR- 30,000

Model #: GTDWLPDT-HD

AVAILABLE WIDTH: 102"

AVAILABLE LENGHTS: 25', 30' 32', 36', 40'

----------------------------------------------------------------------

--- COUPLER: 30K SQUARE ADJUSTABLE COUPLER --- 8" CHANNEL INSERTS CROSS FRAME SUPPORTS

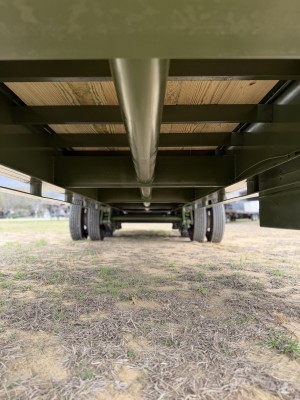

--- JACKS: TWO - 12K TWO SPEED SPRING LOADED DROP LEG JACKS --- TOR-K-ONTROL: "TORQUE-TUBE" FLEX CONTROL PIPE IN CTR OF FRAME

--- PLUG: 7-WAY RV STYLE MOLDED HARNESS / GROUNDED TO FRAME --- CROSSMEMBERS: 3" CHANNEL IRON / ON 16" CENTERS

--- LIGHTS: "LED" RUBBER MOUNTED RUNNING, STOP, TURN & CLEARANCE --- BED SIDE CAP: 6" CHANNEL SIDE FRAME W/KICKER BRACING TO FRAME

--- WIRING: ALL WIRES ARE RAN THROUGH INCLOSED CONDUIT --- FLOOR: #1 PRES TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN

--- SUSPENSION: DEXTER HEAVY DUTY ADJUSTABLE SPRING SYSTEM --- 3/16"STEEL WHEEL CAPS FOR TIRE TRAVEL CLEARANCE

--- AXLES: TWO - 16K DEXTER W/8-LUG HUBS W/OIL BATH LUBRICATION --- BED: 102" WIDE AND (LENGTH INCLUDES A 5' DOVE TAIL)

--- BRAKES: TWO - ELECTRIC DRUM BRAKES W/BREAK AWAY & CHARGER --- STEP: UNDER BODY FOOT STEP W/HANDEL ON BOTH SIDES

--- TIRES: NEW ST215/75/R/17.5" RADIAL LOAD RANGE "H" 18-PLY --- BACK BUMPER: 3"X 8"X 1/4"WALL RECT. TUBING BUMPER, LIGHT PROTECTION

--- WHEELS: 8 - HOLE HEAVY DUTY SOLID STEEL DUALS --- RAMPS: TWO - HEAVY DUTY SPRING LOADED FLIP OVER, W/RAMP BLOCK,

--- SPARE MOUNT: SECURELY MOUNTED INSIDE OF NECK (MOUNT ONLY) --- 1/2" DOUBLE PIVOT HINGED, 3"CHANNEL CENTER BRACING

--- TIE DOWNS: 3" STAKE POCKETS W/RUB RAIL WELDED TO OUTSIDE AND --- STICKERS: ALL WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS

--- PIPE-SPOOLS SUPPORT BETWEEN EVERY STAKE POCKET --- EXT. FINISH: PAINTED WITH A NEWLY INOVATED, DURABLE HIGH GLOSS

--- STORAGE: TOOLBOX W/LOCKABLE LID BETWEEN GN NECK RISERS --- ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH

--- NECK RISER: 14" X 22# I - BEAM W/3/8" FLAT TIE PLATE UNDER FRAME --- UNDERCOATING: COMPLETELY COA0ED W/A DURABLE PROTECTIVE FINISH

--- GUSSETS: 30"TALL X 24"LONG X 1/4"THICK W/CUSTOM KT LOGO CUTOUT --- TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING

--- NECK: 14" X 22# I - BEAM W/6" CHANNEL CROSSING BRACING --- WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE

--- FRAME: 14" X 22# I - BEAM, "LOW-PROFILE" PIERCED FRAME

--- W/APPROXIMATE 36"BED HEIGHT, BRIDGE TRUSS UNDER FRAME

STEP 1

Select A Trailer:

Select Additional Features:

Upgrade #	Optional Upgrades	Upgrade Price
AX16KE/H-DISC-102	102"- 16K ELEC/DISC BRAKES	$
DTWODT	YELLOW PINE WOOD ON DOVETAIL	$
ELSOLARCHARG-7.5A	7.5 AMP SOLAR PANEL CHARGE KIT FOR 12V BATTERY	$
FLDPF-10240-DT	102"- 1/8" DIAMOND PLATE FLOOR	$
FLSGF-102	102"- STEEL GRATE FLOOR	$
FLOAK-102	102"- OAK FLOOR ILO PINE FLOOR	$
FLDPF-DECKOVER-NECK	1/8" DIAMOND PLATE STEEL FLOOR ON DECK OVER NECK	$
GN6X8DON-LIP	SIDE LIPS: 6'X8' DECK OVER NECK	$
GN6X8DON-FLUSH	FLUSH: 6'X8' DECK OVER NECK	$
JK12KHYD2-2/12K	2- 12K HYDRAULIC DROP LEG JACKS W/ BATTERY & BOX & SOLAR PANEL	$
PA-PRIMERTRAILER-GN	PRIMER BEFORE TOP COAT OF PAINT	$
RPSTANDUPRP-DODT	22: WIDE STAND UP RAMPS	$
RPCPU	CENTER POP UP BETWEEN RAMPS ON DOVETAIL	$
RPBIGK-44-HD	HD-BIG K- 44" RAMPS 3/16 THICK METAL ON ALL BRACING	$
RPBIGK-6-BLOCK KICFT	44"- 6" CHANNEL BLOCKS ON BACK OF BIG K RAMPS FOR KICKER FEET	$
RPWORP	YELLOW PINE WOOD ON RAMPS ILO 2"X2"X3/16" ANGEL IRON	$
SBUBTBX-18X18X36	UNDER BODY STORAGE TOOL BOX ( 18"T X 18"D X 36"L)	$
SBCHAINRACK-15	24" CHAINRACK WITH LOCKABLE LID-HOLDS 15 HOOKS	$
SB-GN-8FT-STG-TRAY	108" TRAY UNDER SIDE OF GOOSENECK DECK OVER FRAME	$
SP2157517.5-R-18P/DW	SPARE- ST-215-75-R-17.5-18P RADIAL ? 8 HOLE- DUAL WHEEL	$
TDSLIDERAILS	(PER FT) SLIDE RAIL UNDER ONE SIDE OF FRAME ON DECKOVERS	$
WINC7.8KWINCHPKG	8K WARN ELECTRIC WINCH W? BATTERY BOX,BATTERY & WINCH	$
WINCWPGTDW	WINCH PLATE BETWEEN GOOSENECK RISERS- 10" CHANNEL IRON	$
