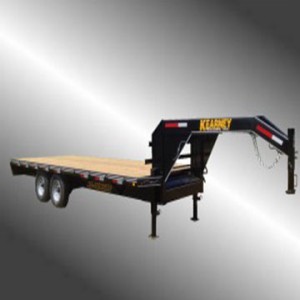

GOOSENECK TANDEM AXLE HEAVY DUTY FLAT DECK 14,000lb GVWR

Model #: GTHDFD 14,000lb GVWR

Standard Features

■ COUPLER: 2 5/16" 25K COUPLER ADJ. W/PIN & SET SCREWS■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ SPARE MOUNT: SECURELY MOUNTED INSIDE NECK (MOUNT ONLY)■ BED: 102" WIDE, & LENGHT ORDERED, FLAT DECK *NOTE*: 102" WIDE BED MAY NOT BE LEGAL IN SOME STATES
■ JACKS: TWO - 10K SPRING LOADED DROP LEG JACKS■ TIE DOWNS: STAKE POCKETS W/RUB RAIL ON OUTSIDE W/PIPE-SPOOLS SUPPORT BETWEEN EVERY STAKE POCKET■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ PLUG: 7 - WAY MOLDED HARNESS / GROUNDED TO FRAME■ STORAGE: TOOLBOX W/LOCKABLE LID BETWEEN GN RISERS■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ LIGHTS: ALL "LED" W/NEW 3/4"LED PIN STYLE CLEARANCE■ NECK RISER: 12" X 14# I-BEAM■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM■ NECK: 8" X 11.5# CHANNEL IRON■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS■ FRAME: 12" X 14# I-BEAM W/5" CHANNEL SIDE CAPS■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ BRAKES: TWO - ELECTRIC BRAKES W/BREAK AWAY & CHARGER■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / ON 18" CENTERS■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ TIRES: ST235/80/R/16"/RADIAL LOAD RANGE "E" 10-PLY■ BACK BUMPER: 12" X 14# I-BEAM W/TAPPERED ENDS


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  GTHDFD 20 4450 # 8'6" X 20' $
  GTHDFD 25 4850 # 8'6" X 25' $
  GTHDFD 30 5750 # 8'6" X 30' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  TWTU235R14P8SM UPGRADE 4 TIRES TO ST235-85-R-16-14P $
  SP235-R-14P-8-S SPARE ST 235/85/R/16" 14 PLY $
  SP235-R-6-SM SPARE ST 235/80/R/16" 10 PLY $

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now
