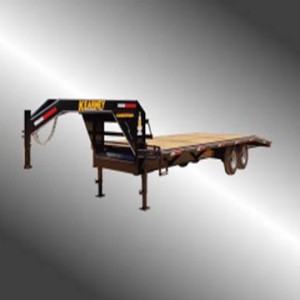

GOOSENECK TANDEM AXLE HEAVY DUTY DOVE TAIL 14,000lb GVWR

Model #: GTHDDT 14,000lb GVWR

Standard Features

■ COUPLER: 2 5/16" 25K COUPLER ADJ. W/PIN & SET SCREWS■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS■ BED: 102" WIDE AND (LENGTH INCLUDES A 5' DOVE TAIL )*NOTE*: 102" WIDE BED MAY NOT BE LEGAL IN SOME STATES
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ SPARE MOUNT: SECURELY MOUNTED INSIDE NECK (MOUNT ONLY)■ BACK BUMPER: 3"X 8"RECTANGULAR TUBING BUMPER, FOR LIGHT PROTECTION
■ JACKS: TWO - 10K SPRING LOADED DROP LEG JACKS■ TIE DOWNS: STAKE POCKETS W/RUB RAIL ON OUTSIDE W/PIPE-SPOOLS SUPPORT BETWEEN EVERY STAKE POCKET■ RAMPS: TWO - SPRING LOADED, DOUBLE PIVOT HINGED FLIP OVER
■ PLUG: 7 - WAY MOLDED HARNESS / GROUNDED TO FRAME■ STORAGE: TOOLBOX W/LOCKABLE LID BETWEEN GN RISERS■ STICKERS: ALL WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ LIGHTS: ALL "LED" W/NEW 3/4"LED PIN STYLE CLEARANCE■ NECK RISER: 12" X 14# I-BEAM■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM■ NECK: 8" X 11.5# CHANNEL IRON■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS■ FRAME: 12" X 14# I-BEAM W/5" CHANNEL SIDE CAPS■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ BRAKES: TWO - ELECTRIC BRAKES W/BREAK AWAY & CHARGER■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / ON 18" CENTERS■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ TIRES: ST235/80/R/16"/RADIAL LOAD RANGE "E" 10-PLY■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  GTHDDT 25 4850 # 8'6" X 25' $
  GTHDDT 30 5550 # 8'6"X 30' $
  GTHDDT 32 5650 # 8'6" X 32' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  TWTU235R14P8SM UPGRADE 4 TIRES TO ST235-85-R-16-14P $
  SP235-R-14-P-8-S SPARE ST 235/85/R/16" 14-PLY $
  SP235-R-6-SM SPARE ST 235/80/R/16" 10-PLY $
  RPCPU CENTER POP UP BETWEEN RAMPS $

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now

Need Help? Call Us at

903-473-3405

Send Us an Email

Contact Us Now

Contact Information for

Authorized Dealers
