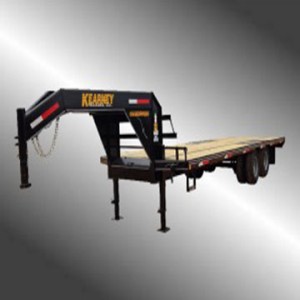

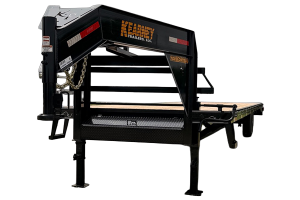

GOOSENECK TANDEM AXLE DUAL WHEEL LOW PROFILE FLAT DECK 20,000 lb GVWR

Model #: GTDWLPFD 20,000lb GVWR

Standard Features

■ COUPLER: 34'& UNDER 2 5/16" 25K COUPLER ADJ. W/PIN *35'& OVER 2 5/16" 30K SQ COUPLER ADJUSTABLE■ WHEELS: 8 - HOLE POWDER COATED SILVER DUALS■ BACK BUMPER: 12" X 14# I-BEAM W/TAPPERED ENDS
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ TIE DOWNS: STAKE POCKETS W/RUB RAIL ON OUTSIDE W/PIPE-SPOOLS SUPPORT BETWEEN EVERY STAKE POCKET■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN
■ JACKS: TWO - 10K SPRING LOADED DROP LEG JACKS■ STORAGE: TOOLBOX W/LOCKABLE LID BETWEEN GN UPRIGHTS■ BED: 102" WIDE, & LENGHT ORDERED, FLAT DECK *NOTE*: 102" WIDE BED MAY NOT BE LEGAL IN SOME STATES
■ PLUG: 7 - WAY MOLDED HARNESS / GROUNDED TO FRAME■ NECK RISER: 12" X 19# I-BEAM■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ LIGHTS: ALL "LED" W/NEW 3/4"LED PIN STYLE CLEARANCE■ NECK: 34' & SHORTER - 10" CHANNEL IRON *35' & LONGER - 12" I - BEAM■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ SUSPENSION: EQUALIZER, W/SLIPPER SPRINGS■ FRAME: 12" - 19 Lb. I - BEAM, PIERCED FRAME W/APPROXIMATE 34" BED HEIGHT "LOW-PROFILE"■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ AXLES: TWO - 10K AXLES W/OIL BATH HUBS■ **35'& OVER STANDARD W/BRIDGE FRAME TRUSS■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ BRAKES: TWO - ELECTRIC BRAKES W/BREAK AWAY & CHARGER■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / ON 18" CENTERS■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY■ TOR-K-ONTROL: "TORQUE-TUBE" STANDARD ON ALL MODELS■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  GTDWLPFD 20 5750 # 8'6" X 20' $
  GTDWLPFD 25 6250 # 8'6" X 25' $
  GTDWLPFD 30 6750 # 8'6" X 30' $
  GTDWLPFD 32 6950 # 8'6" X 32' $
  GTDWLPFD 36 7450 # 8'6" X 36' $
  GTDWLPFD 40 7950 # 8'6" X 40' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CP30KSQGN 30K GOOSENECK TOP WIND COUPLER ILO 25K ROUND COUPLER $
