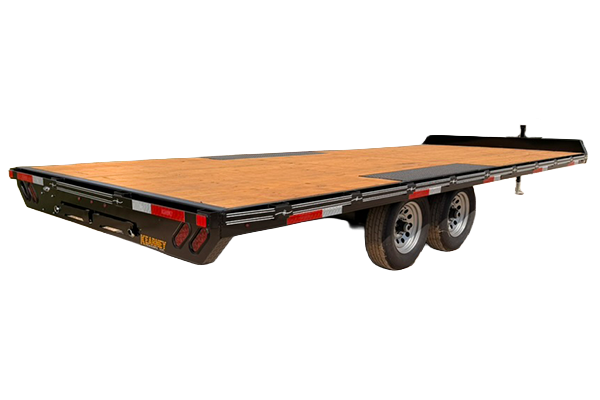

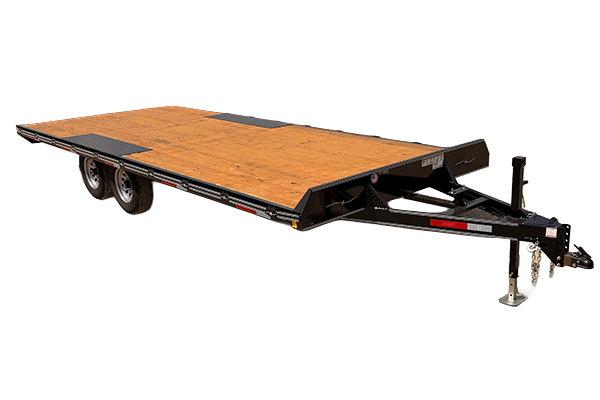

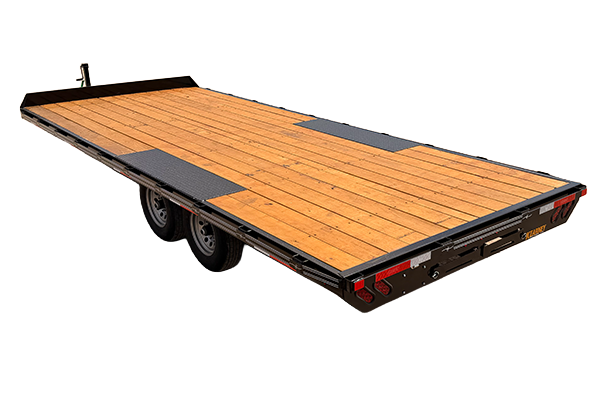

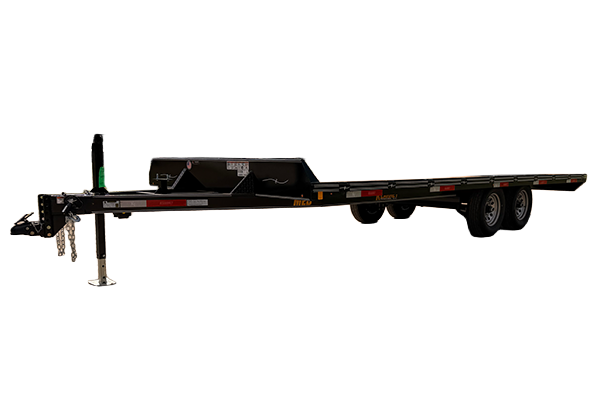

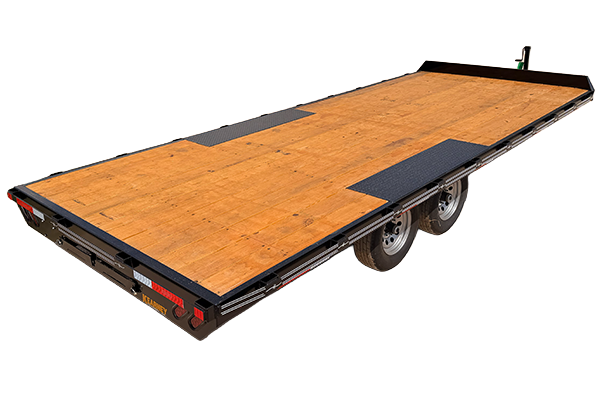

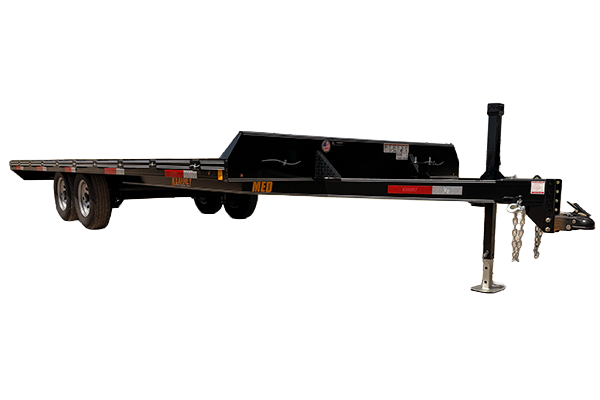

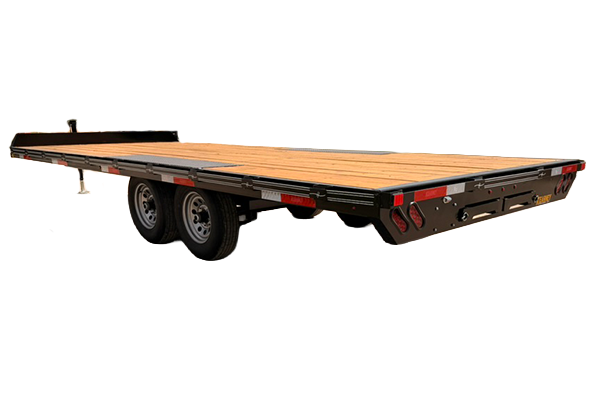

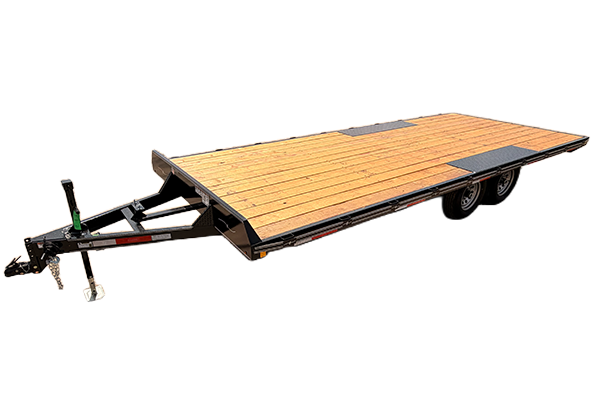

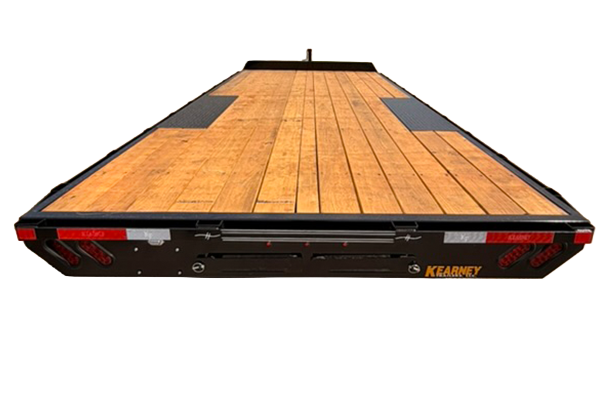

BUMPER TANDEM AXLE MEDIUM DUTY FLAT DECK

Model #: BTMEDFD 9,995# GVWR

Standard Features

■ COUPLER: 2 5/16" ADJUSTABLE COUPLER ■ TIRES: NEW ST225/75/R/15" RADIALS LOAD RANGE "E" 10-PLY ■ BED: 102" WIDE AND THE LENGTH BEING ORDERED *NOTE*: 102" WIDE BED MAY NOT BE LEGAL IN SOME STATES
■ SAFETY CHAIN: 3/8" CHAIN W/ SAFETY HOOKS ■ WHEELS: 6 - HOLE POWDER COATED SILVER MODS ■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ JACK: 7K DROP LEG W/ SAND FOOT ■ TIE DOWNS: 3" STAKE POCKETS W/ RUB RAIL WELDED TO OUTSIDE ■ EXT FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME ■ TONGUE: 5" X 6.7# - CHANNEL IRON / WRAPS AROUND TO REAR AXLE ■ UNDERCOATING: COMPLETELY COATED W/ A DURABLE PROTECTIVE FINISH
■ LIGHTS: ALL "LED" W/ NEW 3/4"LED PIN STYLE CLEARANCE ■ FRAME: 5" X 6.7# - CHANNEL IRON ■SPARE MOUNT: SECURELY MOUNTED INSIDE TONGUE (MOUNT ONLY)
■ SUSPENSION: EQUALIZER W/ 5 LEAF SLIPPER SPRINGS SYSTEM ■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / ON 24" CENTERS ■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ AXLES: TWO - 5.2K DEXTER IDLERS / CAMBERED W/ ACCU-LUBE HUBS ■ BUMP RAILS: 8" TALL 102" WIDE ■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ BRAKES: TWO - ELECTRIC BRAKES W/ BREAK AWAY & CHARGER ■ FLOOR: #1 PRESSURE TREATED/ 2" X 8" PINE / DOUBLE SCREWED/PER/RUN

STEP 1

Select A Trailer:

Model #	App. Empty Wt.	Description of Trailer Size	Price
BTMEDFD 16	3100 #	8'6" X 16"	$
BTMEDFD 20	3850 #	8'6" X 20"	$

STEP 2

Select Additional Features:

Upgrade #	Optional Upgrades	Upgrade Price
CM16CTR3CH-102	(PER-FOOT) 102"W - 16" ON CENTER CROSSMEMBER SPACING	$
JK12KDL-7K	12K DROP LEG JACK SET ON FRAME	$
LTLEDMIDTURN	MID TURN LIGHTS UNDER SIDES OF DECKOVER TRAILER	$
RPSRC8	8' CHANNEL IRON SLIDE IN RAMPS IN THE BACK OF DECKOVER	$
SJSTBL10KDL	STABILIZER 12K DROP LEG JACK SIDE WIND MOUNTED ON SIDE - EA	$
SBUBTBX-18X18X36	UNDER BODY STORAGE TOOL BOX (18"T X 18"D X 36"L)	$
SB-GN-8FT-STG-TRAY	108" TRAY UNDER ONE SIDE OF DECKOVER FRAME TO HOLD 8FT TIMBERS	$
SP2257515-R-10P/6SM	SPARE ST-225-75-R-15-10PLY RADIAL / 6 HOLE - SILVER MOD	$
TD-DRWO-1/2	1/2" WELD ON D-RINGS - EACH	$
TD-DRWO-5/8	5/8" WELD ON D-RINGS - EACH	$
TDSLIDERAILS	SLIDE RAILS UNDER ONE SIDE OF FRAME ON DECKOVER (RAIL ONLY) (PRE-FT)	$
TDSLIDERACHETS	METAL SLIDE RATCHET / FOR SLIDE TRAK RAIL ON DECKOVER TRAILERS - (EACH)	$
TD4"RACHETSSTRAPS	4" WIDE RATCHET STRAPS FOR GOOSENECK FLATBED SLIDE RATCHETS	$
TWTA225R1510P/6HBLK	TA/6H BLACK MODS	$
PINSTRIP	ANY COLOR OTHER THAN (WHITE or BLACK)	$

STEP 3

Click Below To Submit Online For A Free Quote:

Submit Now

903-473-3405
