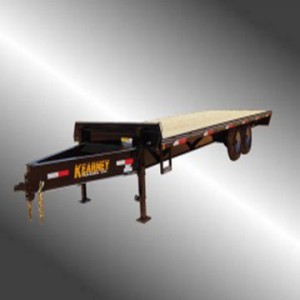

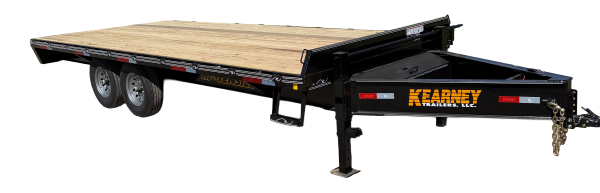

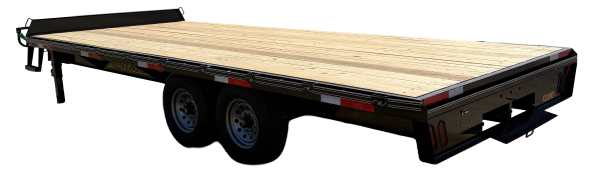

BUMPER TANDEM AXLE HEAVY DUTY FLAT DECK 14,000lb GVWR

Model #: BTHDFD 14,000lb GVWR

Standard Features

■ COUPLER: 2 5/16" ADJUSTABLE COUPLER■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY■ BED: 102" WIDE AND THE LENGTH BEING ORDERED *NOTE*: 102" WIDE BED MAY NOT BE LEGAL IN SOME STATES
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ WHEELS: 8 - HOLE POWDER COATED SILVER MODS■ STICKERS: WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ JACK: 10K SPRING LOADED DROP LEG W/SAND FOOT■ TIE DOWNS: 3" STAKE POCKETS W/RUB RAIL WELDED TO OUTSIDE■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ TONGUE: 12" X 14# - I - BEAM PART OF THE FRAME■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ LIGHTS: ALL "LED" W/NEW 3/4"LED PIN STYLE CLEARANCE■ FRAME: 12" X 14# - I - BEAM■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ SUSPENSION: EQUALIZER W/5 LEAVE SLIPPER SPRINGS SYSTEM■ CROSSMEMBERS: 3" X 3.5# CHANNEL IRON / ON 24" CENTERS■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ AXLES: TWO - 7K AXLES / CAMBERED W/ACCU-LUBE HUBS■ BUMP RAILS: 8" X 11.5# CHANNEL IRON 102" WIDE■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ BRAKES: TWO - ELECTRIC BRAKES W/BREAK AWAY & CHARGER■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTHDFD 20 4350 # 8'6" X 20' $
  BTHDFD 25 4750 # 8'6" X 25' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  TWTU235R14P8SM UPGRADE 4 TIRES TO ST235-85-R-16-14P $
  SP235-R-14P-8-S SPARE ST 235/85/R/16" 14-Ply $
  SP235-R-6-SM SPARE ST 235/80/R/16" 10-Ply $
