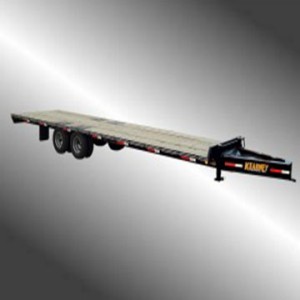

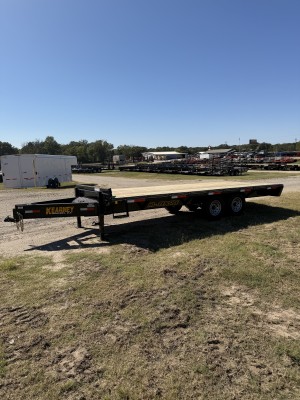

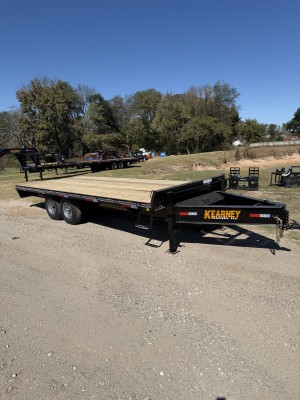

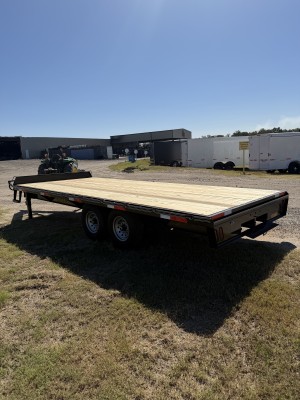

BUMPER TANDEM AXLE DUAL WHEEL LOW PROFILE FLAT DECK 20,000lb GVWR

Model #: BTDWLPFD 20,000lb GVWR

Standard Features

■ Coupler: 30K - Adjustable Pintle Ring■ Wheels: New 8H/4.75BP Powder Coated Silver Dual■ TOR-K-ONTROL:"Torque-Tube" Standard On All Lengths
■ Safety Chains: 3/8" Chain w/ Safety Latching Hooks■ Tie Downs: Stake Pockets on Outside of Frame■ Bumper: 12" x 19# I - Beam w/ Tapered Ends
■ Jacks: Two - 10K Spring Loaded Drop Leg Jacks■ Rub Rail On Outside Of Stake Pockets For Easy Tie■ Floor: Treated 2" x 8" Pine Lumber w/ Double Screws
■ Plug: 7 - Way Molded Harness (Grounded To Frame)■ Tie Downs: Pipe Spools Between Every Stake Pocket■ Bed: 102" Wide & Length Ordered Flat Deck
■ Lights: All LED w/New 3/4" LED Pin Style Clearance■ Toolbox w/ Lockable Lid Between The Tongue■ Stickers: All Warnings & KEARNEY Reflective Logos
■ Suspension: Equalizer w/ Slipper Springs■ Tongue: 12" x 19# I - Beam ■ Exterior Finish: Durable High Gloss Acrylic Finish
■ Axles: Two - 10K Axles w/ Oil Bath Hubs■ Frame: 12" x 19# I - Beam Pierced Frame■ Trim: Standard w/ White or Black Pin Striping
■ Brakes: Two - Electric w/ Break Away & Charger■ With Approximate 33" Bed Height in Low Profile■ Warranty: Limited Two Year Kearney Warranty
■ Tires: New ST 235/80/R/16" (Load Range E)■ Crossmembers: 3" Channel Iron, w/ 18" On Centers


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTDWLPFD 20 4050 # 8'6" X 20' $CALL FOR QUOTE
  BTDWLPFD 25 5150 # 8'6" X 25' $CALL FOR QUOTE
  BTDWLPFD 28 5650 # 8'6" X 28' $CALL FOR QUOTE

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  CPBP25KBALLMT35 2 5/16 25K COUPLER ILO 35K PINTLR RING COUPLER $
  ELEC7.8KWINCHPKG 7.8K BULLDOG ELECTRIC WINCH W/ BATTERY BOX BATTERY & WINCH PLATE $
  JK10KDL2S TWO 2 SPEED JACKS ILO OF TWO SINGLE SPEED JACKS $
  JK12KHYDJACK-12 2 12K HYDROLIC JACKS ILO 2 12K MANUAL SPRING LOADED JACKS $
  JK12KELECTMOTDL 12K ELECTRIC DROP LEG JACK W/ BATTERY AND BATTERY BOX $
  TD4RATCHERSSTRA 4" WIDE STRAPS FOR SLIDING METAL RACHETS $
  TDSLIDERATCHETS METAL SLIDE RATCHETS FOR SLIDING TRACK ON DECKOVER $
  TDSLIDERAILS SLIDE RAILS UNDER FRAME ON DECKOVER TRAILERS $
  RPSRCH87 8' Slide in Ramps In Back Of Deckovers $
  SBTBX 18"X14"X36" UNDERBODY BOX $
  AX12K 12K OIL BATH ELEC. BRAKES ILO 10K OIL BATH ELEC. BRK $
  AX12E/HD12B-10E 12K ELEC/HYDROLIC DISC. OIL BATH AXLES ILO 10K ELEC/BRAKE $
  DTDOZER DOZER PACKAGE (RAMP BLKS. TRANSITION PLATE & 3" CHANNEL $
  DTWODT WOOD ON DOVE (FOR DULUXE DOZER PACKAGE) $
  TW235EDR1614P/8 ST235-85-R-16-14P/8H-DUAL WHEE LS ILO ST235-80-R-16-10P/8H-DU AL WHEELS TIRE UPGRADE $
  SP235-R14P/8-DW SPARE ST-235-85-R-16-14P / 8 H - DUAL WHEEL $
  SP235-D-8-SM SPARE ST-235-80-R-16-10P / 8 H - DUAL WHEEL $
