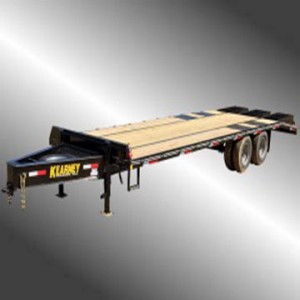

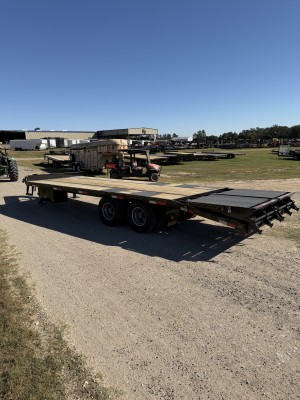

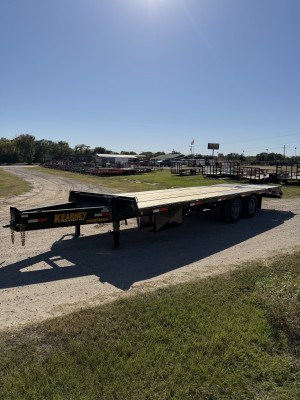

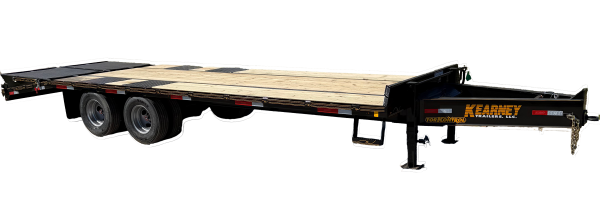

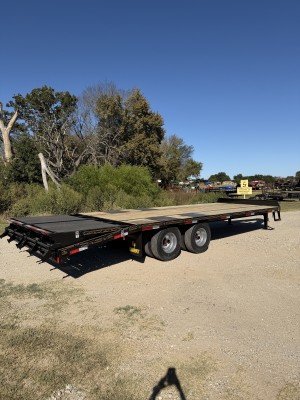

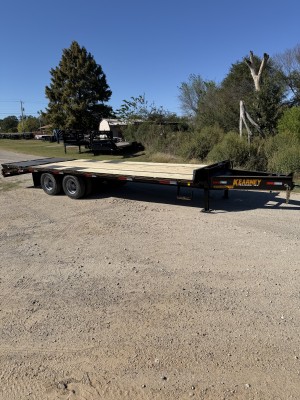

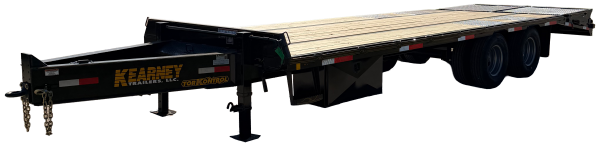

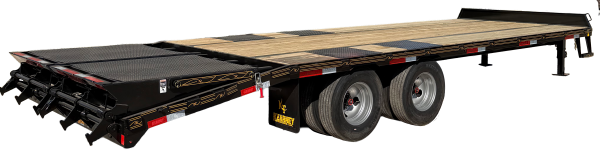

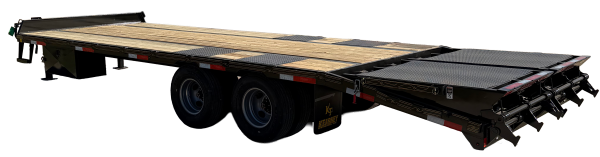

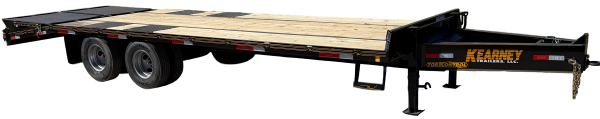

BUMPER TANDEM AXLE DUAL WHEEL LOW PROFILE DOVE TAIL 20,000lb GVWR

Model #: BTDWLPDT 20,000lb GVWR

Standard Features

■ COUPLER: 30K - ADUJUSTABLE PINTLE RING■ SPARE MOUNT: SECURELY MOUNTED INSIDE TONGUE (MOUNT ONLY)■ BED: 102" WIDE AND (LENGTH INCLUDES A 5' DOVE TAIL) *NOTE*: 102" WIDE BED MAY NOT BE LEGAL IN SOME STATES
■ SAFETY CHAIN: 3/8" CHAIN W/SAFETY HOOKS■ TIE DOWNS: 3" STAKE POCKETS W/RUB RAIL WELDED TO OUTSIDE AND PIPE-SPOOLS SUPPORT BETWEEN EVERY STAKE POCKET■ BACK BUMPER: 3"X 8"RECTANGULAR TUBING BUMPER, FOR LIGHT PROTECTION
■ JACKS: TWO - 10K SPRING LOADED DROP LEG JACKS■ STORAGE: TOOLBOX W/LOCKABLE LID INSIDE OF TONGUE■ RAMPS: TWO - SPRING LOADED, DOUBLE PIVOT HINGED FLIP OVER
■ PLUG: 7 - WAY MOLDED PLUG HARNESS / GROUNDED TO FRAME■ TONGUE: 12" X 19# I - BEAM, PART OF THE FRAME■ STICKERS: ALL WARNING & SAFETY/DOT & REFLECTIVE KEARNEY LOGOS
■ LIGHTS: ALL "LED" W/NEW 3/4"LED PIN STYLE CLEARANCE■ FRAME: 12" X 19# I - BEAM, "LOW-PROFILE" PIERCED FRAME W/APPROXIMATE 34"BED HEIGHT, & 5"CHANNEL SIDE CAPS■ EXT PREPPING: 2 STAGE DEGREASING AND ACID PHOSPHATE WASH W/RUST-INHIBITOR TO ENSURE MAXIMUM PAINT ADHESION
■ SUSPENSION: EQUALIZER W/HEAVY DUTY 5 LEAVE SLIPPER SPRING SYSTEM■ CROSSMEMBERS: 3" CHANNEL IRON / ON 18" CENTERS■ EXT. FINISH: PAINTED WITH A NEWLY INNOVATED, DURABLE HIGH GLOSS ACRYLIC POLYURETHANE FULL TWO-COMPONENT FINISH
■ AXLES: TWO - 10K AXLES W/OIL BATH HUBS■ TOR-K-ONTROL: "TORQUE-TUBE" FLEX CONTROL STANDARD ON ALL MODELS■ UNDERCOATING: COMPLETELY COATED W/A DURABLE PROTECTIVE FINISH
■ BRAKES: TWO - ELECTRIC BRAKES W/BREAK AWAY & CHARGER■ BUMP RAILS: 8" X 11.5# CHANNEL IRON 102" WIDE■ TRIM: STANDARD "WHITE" OR "BLACK" PIN STRIPING
■ TIRES: NEW ST235/80/R/16" RADIALS LOAD RANGE "E" 10-PLY■ FLOOR: PRESSURE TREATED/2"X8"PINE,DOUBLE SCREWED/PER/RUN■ WARRANTY: A LIMITED TWO YEAR KEARNEY GUARANTEE
■ WHEELS: 8 - HOLE POWDER COATED SILVER DUALS


STEP 1

Select A Trailer:

Model # App. Empty Wt. Description of Trailer Size Price
  BTDWLPDT 25 5950 # 8'6" X 25' $
  BTDWLPDT 30 6550 # 8'6" X 25' $

STEP 2

Select Additional Features:

Upgrade # Optional Upgrades Upgrade Price
  AX12K 12K - OIL BATH AXLE UPGRADE ILO 10K OIL BATH AXLES $
  JK10KDL2S-2 2/2-SPEED 10K DROP LEG JACK IL O 2/1-SPEED 10K DROP LEG JACK $
  JK12KDUAL-HYD-DL 2/12K HYDRAULIC DROP LEG JACKS W/ BATTERY & BATTERY BOX ILO 1 12K DROP LEG JACK $
  TW23585R1614P/8DW ST235-85-R-16-14P/8H-DUAL WHEE LS ILO ST235-80-R-16-10P/8H-DU AL WHEELS TIRE UPGRADE $
  RPCPU CENTER POP UP BETWEEN RAMPS $
  SP235-R-8-DW SPARE ST-235-80-R-16-10P / 8 H - DUAL WHEEL $
  SP235-R14P/8-DW SPARE ST-235-85-R-16-14P / 8 H - DUAL WHEEL $
